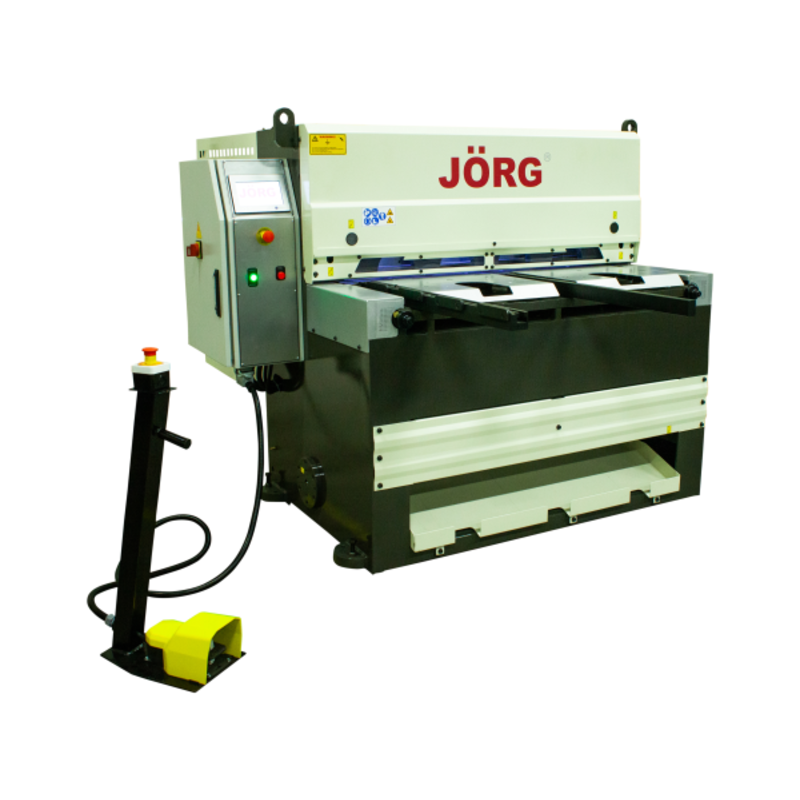

JÖRG Guillotine Shear JRGM-FR 2560

Op maat aan te passen | Binnen


The JÖRG Guillotine Shear JRGM-FR 2560 is a mechanic driven shear. This shear has a fixed return plate, allowing short plates to fall forward. The innovative plate high holder allows the cut plate to be discharged forwards or backwards, the so-called return-to-sender principle.

Standard version:

  • NC motorized back gauge, 750 mm
  • Rear safety screens with photocells
  • Finger protection with a view of the cutting line
  • LED cutting line lighting
  • Front support arms for plate support
  • Table with ball pots
  • Foot pedal with emergency stop

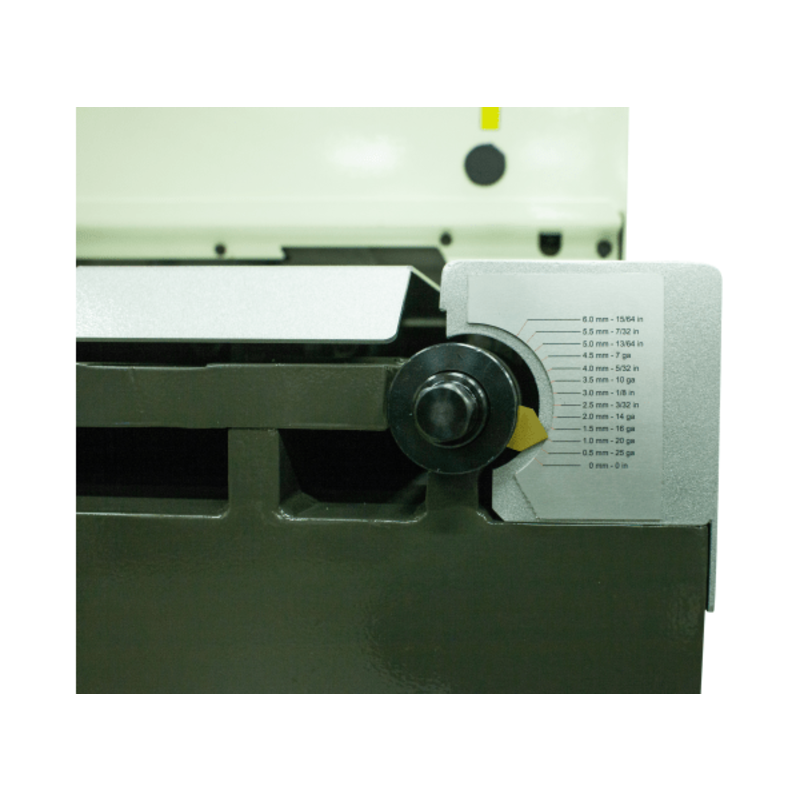

  • Cutting gap adjustment

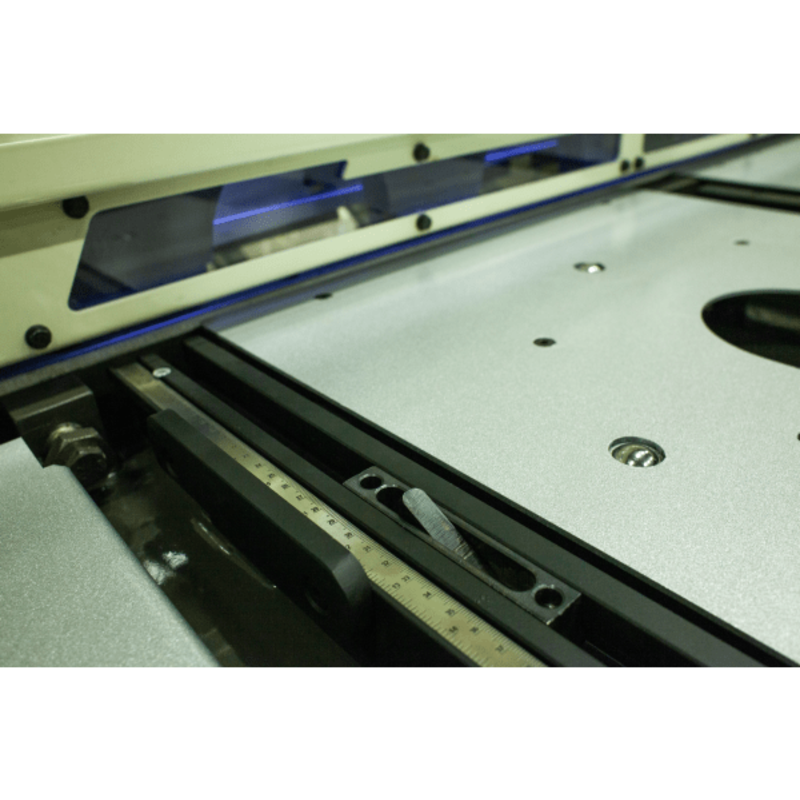

  • Angled gauge with T-slot, tilt stop and ruler
  • Stroke counter
  • Heavy drive
  • Return to sender

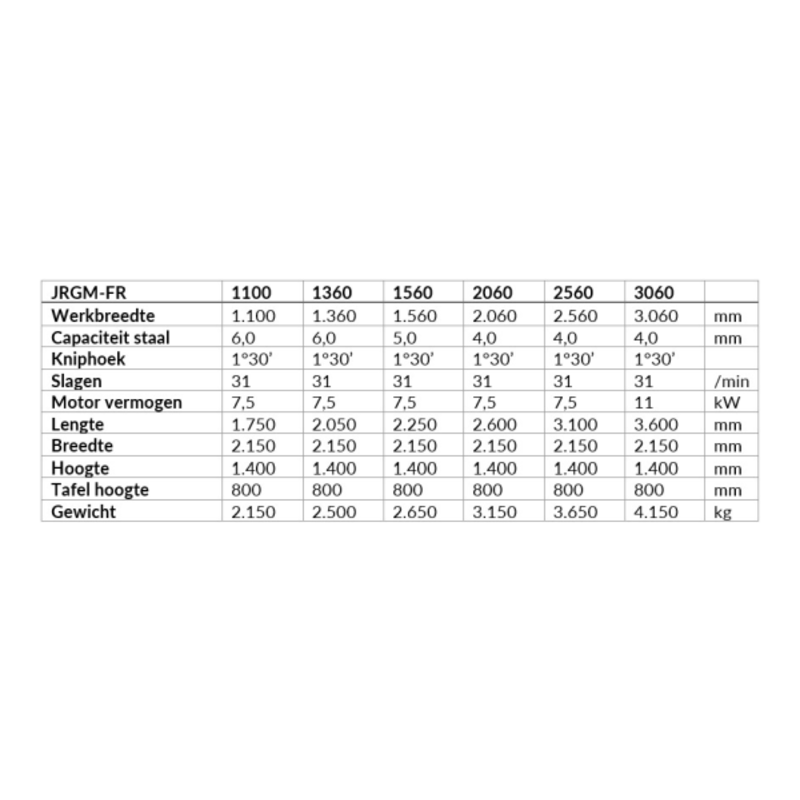

  • Working width2560 mm
  • Capacity (St. 37)4 mm
  • Cutting angle1,30°
  • Strokes31/min
  • Back gauge750 mm
  • Table height800 mm
  • ControlNC
  • Power supply3~400V
  • Engine power7,5 kW
Get in touch with one of our experts Get in touch with one of our experts

Get in touch with one of our experts

Questions about our machines or looking for a quick price indication? Send a message




  • NC motorized back gauge 1000 mm
  • Adjustable angle stop 0-180°
  • Set of blades suitable for stainless steel
  • Pneumatic plate high support discharging back- and forwards
  • FUJI touchscreen
Een op maat gemaakte machine? Send a message
