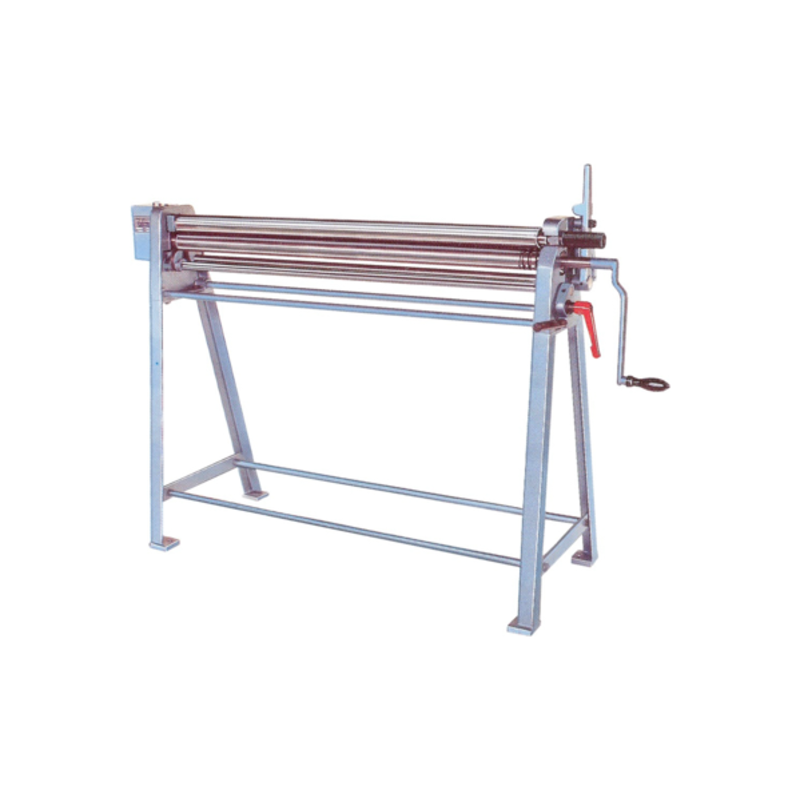

SCHWARTMANNS Bending Roll Machine WSRN

Op maat aan te passen | Binnen

Description

The SCHWARTMANNS Bending Roll Machine WSRN is ideal for workshops, construction sites, and schools thanks to its robust construction, light weight, and maintenance-free design. The rolls are arranged asymmetrically and mounted in maintenance-free plain bearings.

  • Drive: 2-roll drive via a crank handle directly on the lower roll. The gear transmission is located on the left, allowing small pipes to be slid off the top roll.
  • Top roll: Can be swung forward with a single-hand operation.
  • Lower roll: Equipped with 3 wire-grooving notches; sheet thickness is easily adjustable via eccentrics.
  • Bending roll: Equipped with 3 wire-grooving notches and eccentric cams for conical bending. With the help of a gear segment, the bending roll can be adjusted parallel.

Standard features:

  • Asymmetrical roll configuration
  • Base frame
  • Wire-grooving notches
  • Conical bending
  • Bending roll adjustment via gear segment

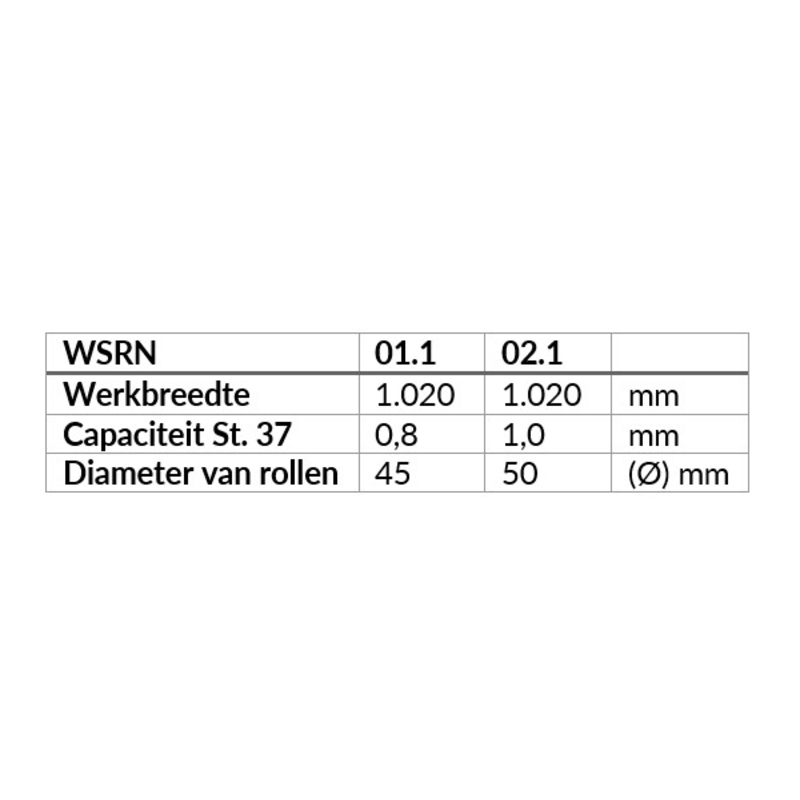

Specifications

  • Working width1020 mm
  • Driven rollers2
  • Capacity (St. 37)0,8 - 1 mm
  • Diameter top roller45 - 50 mm
  • Role set-up Asymmetrical
