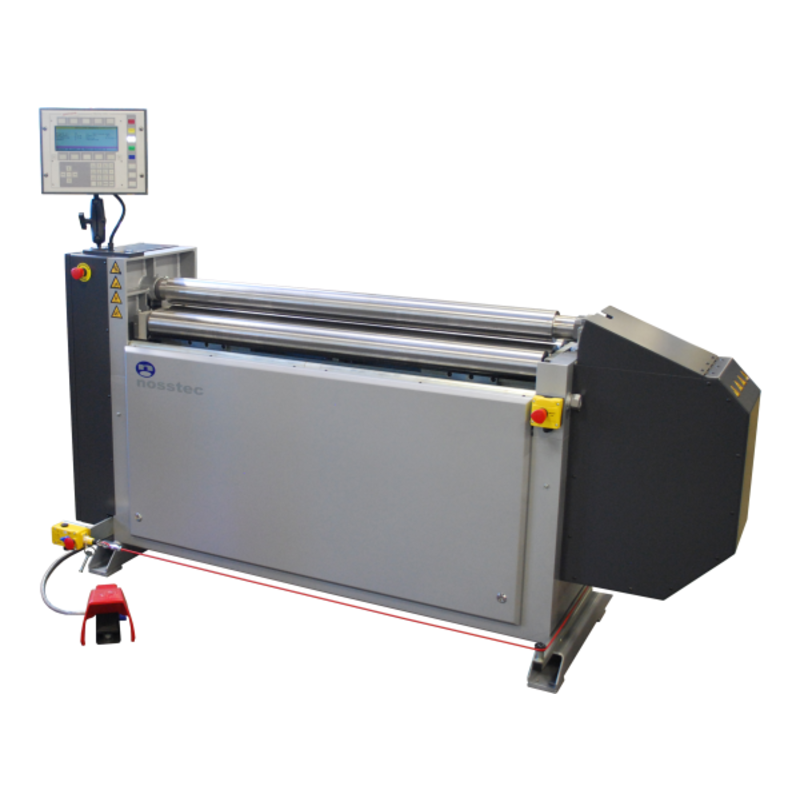

NOSSTEC Bending Roll Machine 8344

Op maat aan te passen | Binnen

Description

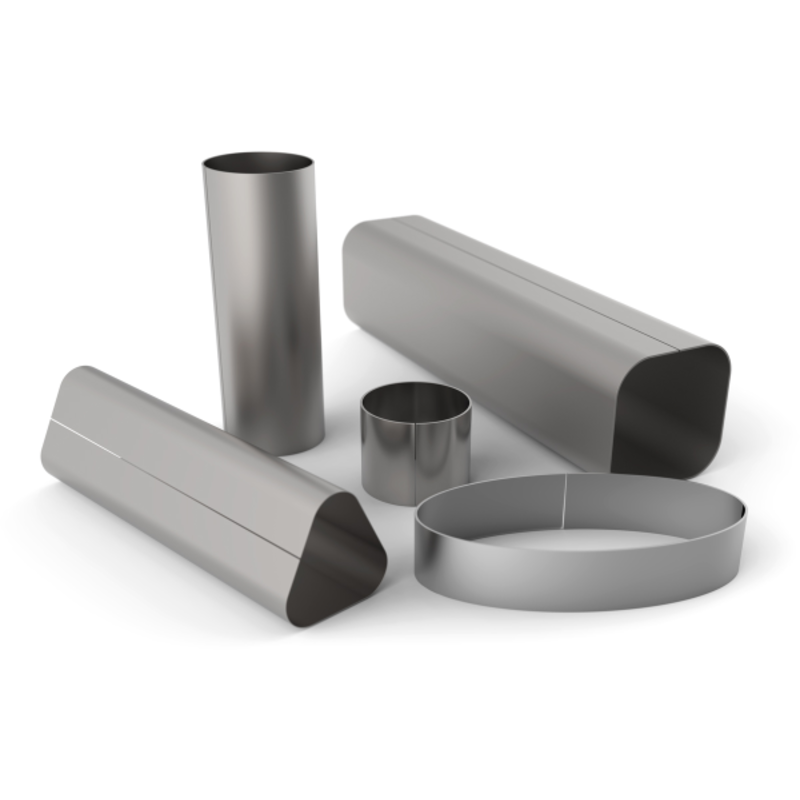

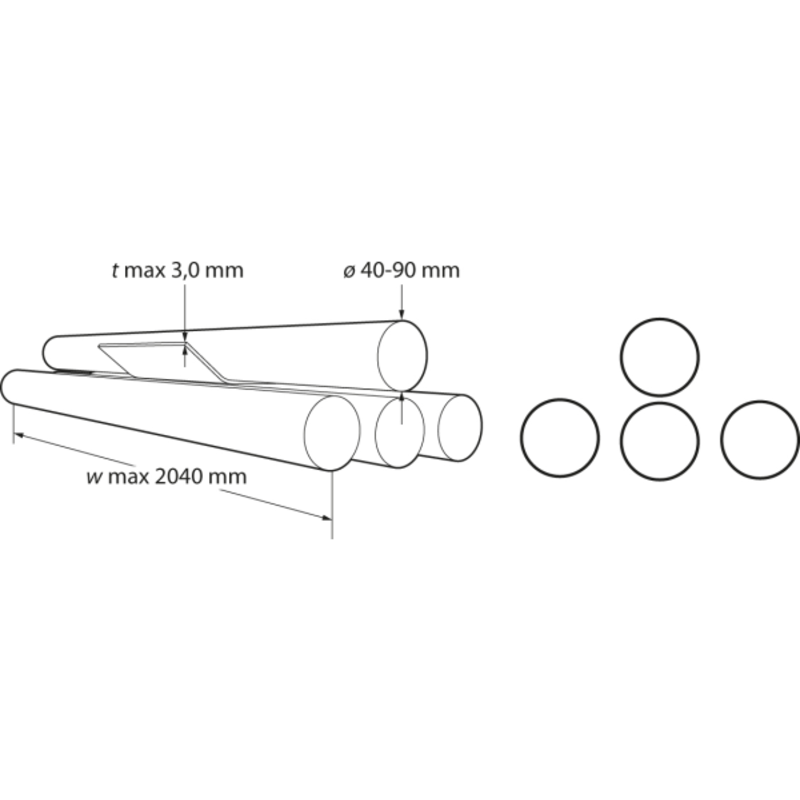

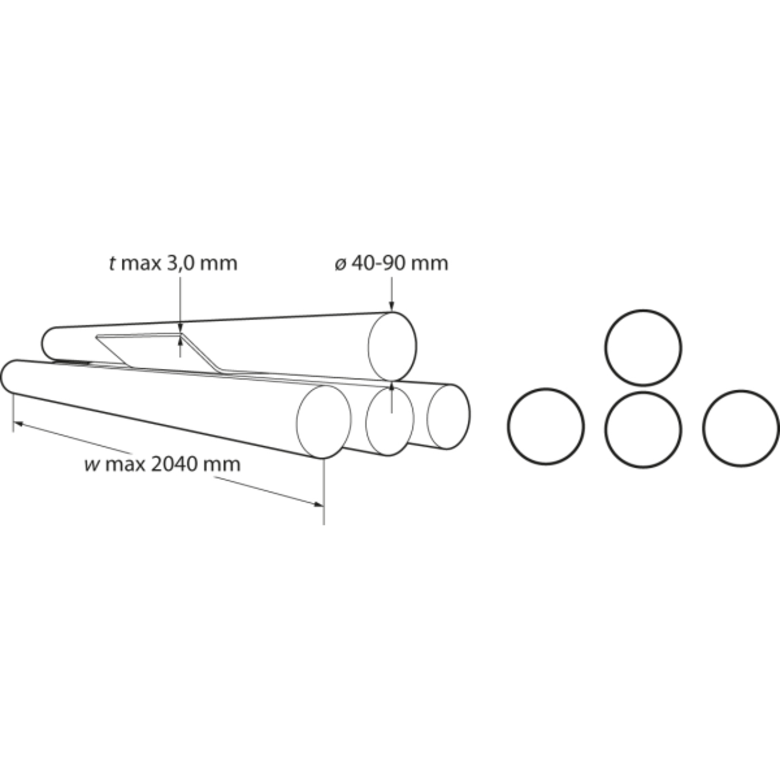

The NOSSTEC Bending Roll Machine 8344 is designed for the production of complex shapes. The machine features three of its four rolls mounted in a pivoting frame – these are the lower roll, bending roll, and pre-bending roll. The top roll is located above the lower roll, resulting in a roller setup with symmetrically placed bending rolls. All four rolls are driven, preventing sheet damage due to slipping. The pivoting frame automatically adjusts to the required rolling position. Its vertical movement is powered by two eccentrics. Thanks to the four-roll system, there’s no need to reinsert the sheet between pre-bending and final rolling. This ensures high repeat accuracy and fast production.

The rolls are mounted in a cassette, providing excellent stability and allowing for quick roll changes if needed. Roll diameters can range from Ø 55 to Ø 90 mm within the same machine frame, allowing easy adjustment of the machine’s capacity.

The machine features an industrial, robust CNC control system that is easy to operate and logically programmed. It can store up to 200 programs internally, and virtually unlimited programs via USB flash drive, which also allows for easy backups.

Standard features:

  • Industrial CNC control with up to 200 programs in internal memory, unlimited with USB flash drive
  • Pre-bending and final bending in a single cycle
  • All four rolls are driven
  • Crowned rolls
  • Programmable axes
  • Designed for maximum precision
  • Rolls mounted in interchangeable cassette
  • Drop-end bearing
  • Adjustable crowning of the lower roll
  • Foot pedal control
  • Emergency stop and tripwire

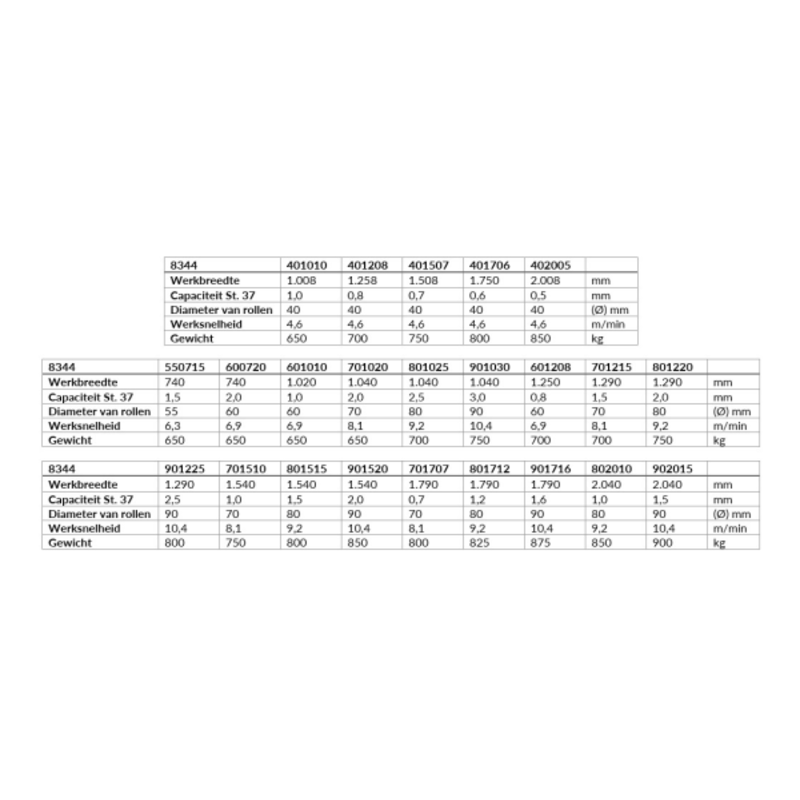

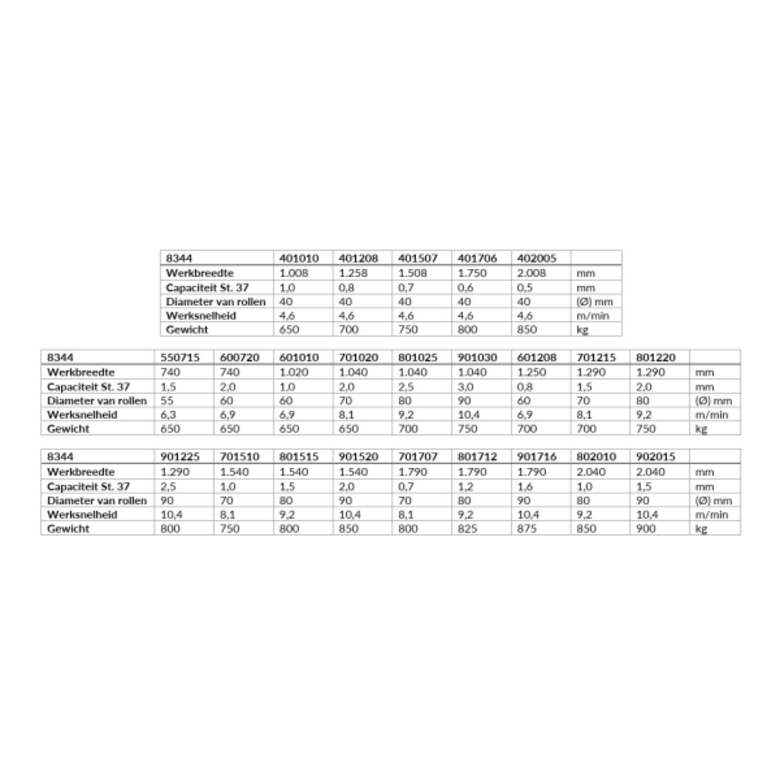

Specifications

  • Working width740 to 2040 mm
  • Driven rollers4
  • Capacity (St. 37)0,5 to 3 mm
  • Diameter top roller40 to 90 mm
  • Working speed4,6 to 10,4 m/min
  • Role set-upAsymmetricall
  • Power supply3~400V
  • Engine power0,75 kW
