Description

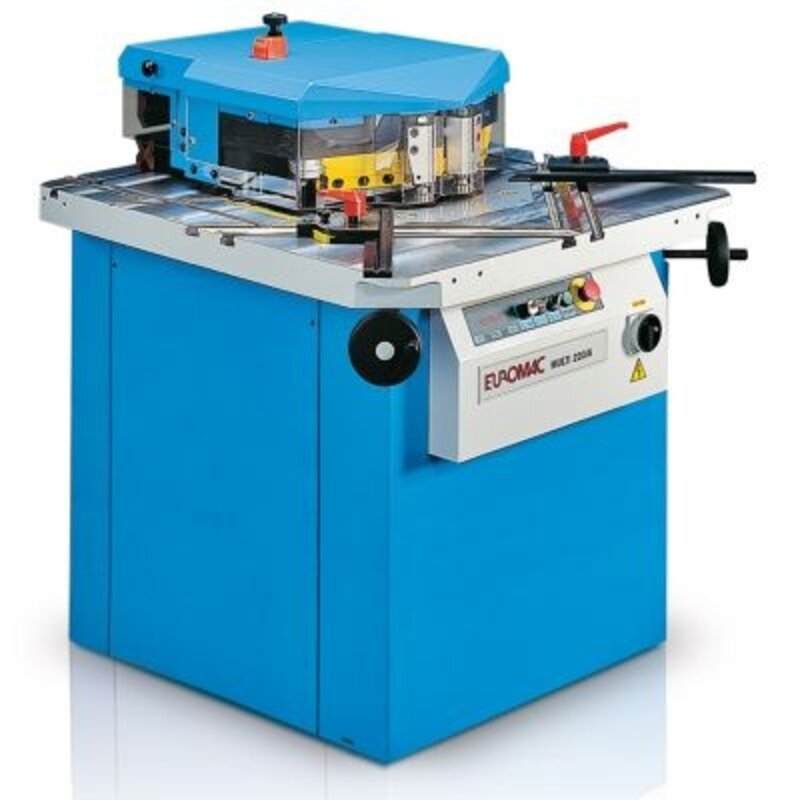

The high productivity of EUROMAC Hydraulic Corner Notcher VA-Multi 220/6R is demonstrated daily by more than 12,000 users around the world. Owners of EUROMAC notchers manufacture thousands of different products using our fixed-angle notchers, variable notchers and our multi-notchers with dual workstations.

Technical description:

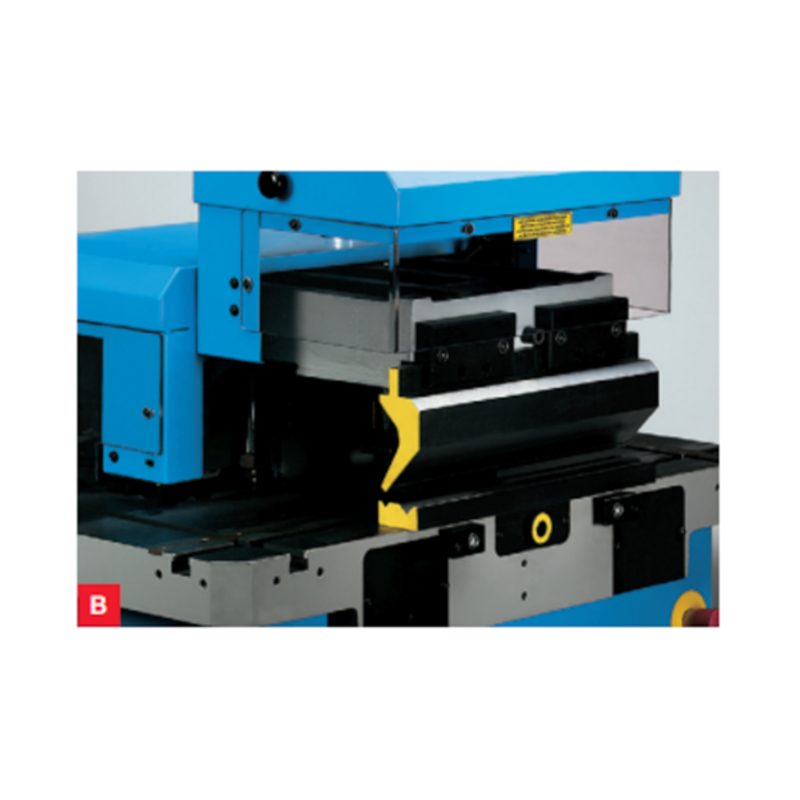

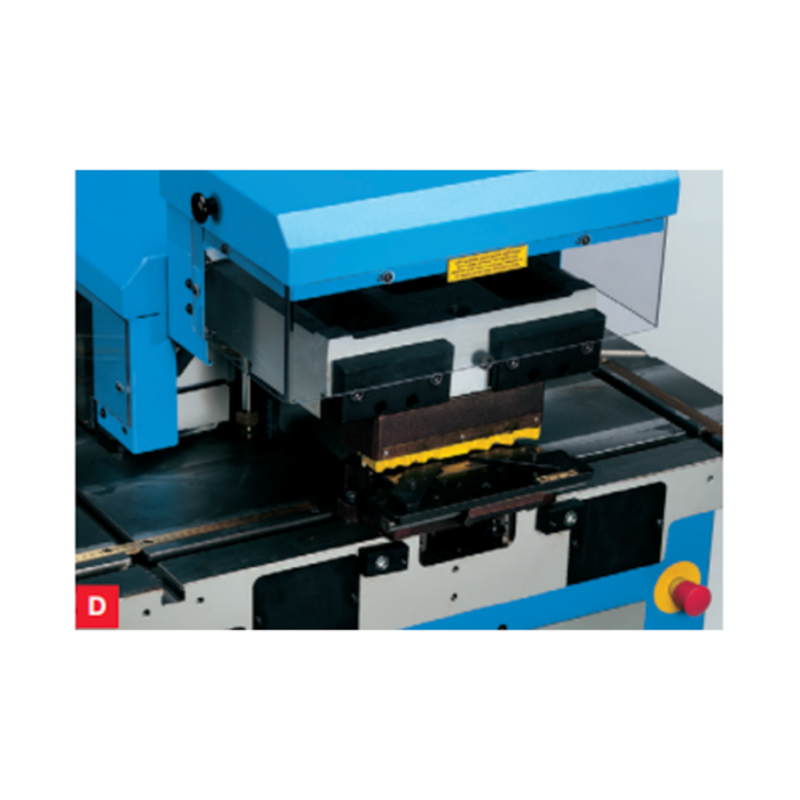

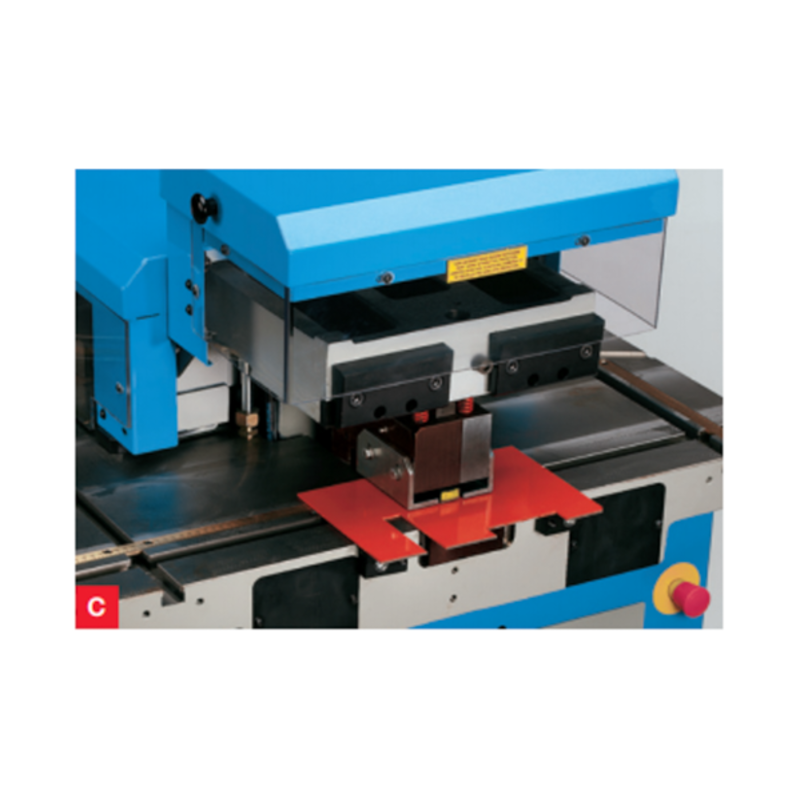

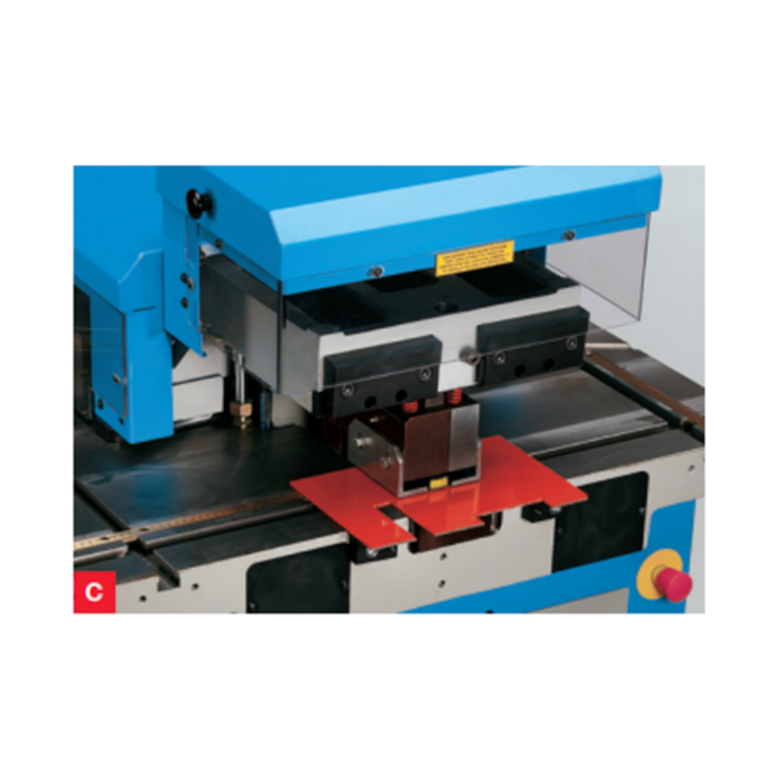

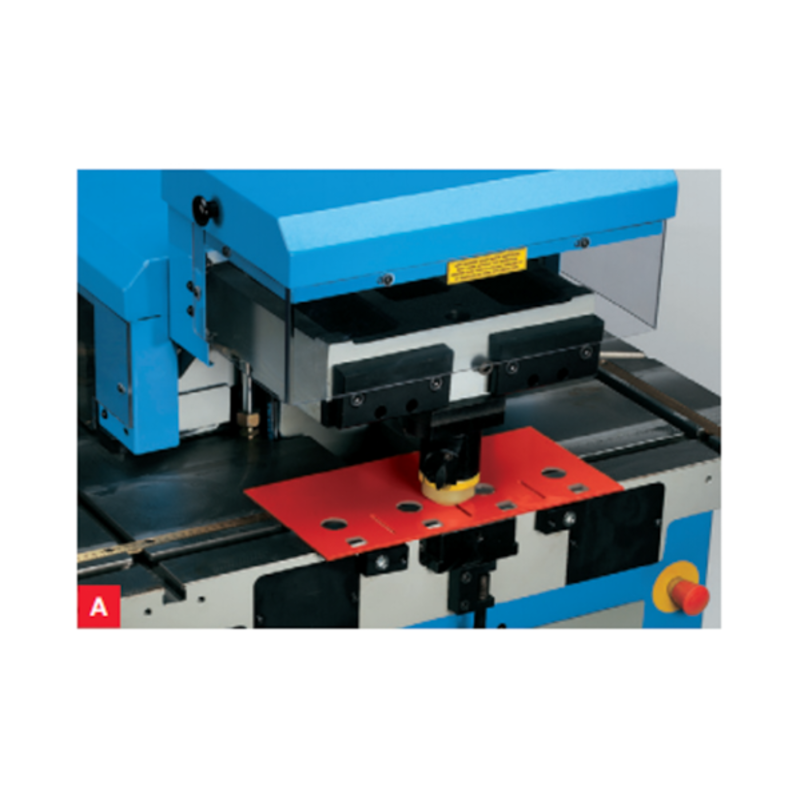

• Variable Angle Cutter equipped with additional machining station on the back for, chipping, radius chipping, punching and edging
• Automatic cutting gap adjustment for a perfect cut in different sheet thicknesses and types of material, without burrs. No time wasted adjusting the blades.
• Stable and straight frame because the machine consists of 2 mono block castings made of Meehanite 650 N/mm2 cast steel, which are connected to a solid 3-fold straightening guide. This stability gives a good cut and a long service life of the blades.
• These articulations are also maintenance-free
• The blades can be mounted either negative or positive, positive then cutting starts at the tip.
• Shielding of the blades with a cover made of transparent polycarbonate. Safety without restrictions.

Standard equipment:

• Worktable with 4 T-slots
• 2 pieces extendable stop rails, rotatable with calibrated pin blocking for every 15° and a clamping handle for intermediate positions
• Adjustable cutting stroke allowing faster cutting of small angles
• Upper and lower blades in HSS steel
• Operation via foot pedal
• Selector switch for single or dual operation
• 2 pieces mechanical lower holders
• Lighting on the cutting surface
• Reversible blades for 60° negative or 30° positive (positive cutting at front max 4mm sheet thickness)
