Description

The SCHECHTL Segment Bending Machine TBS 125 is a so-called job machine with segments (fingers) in the upper, lower and bending beam. With its mobile chassis, this high-quality and precise finger brake is ideally suited for use on construction sites.

• Foldable X-shaped support stand, easy to move and use by one person
• Case for the segments to reduce weight

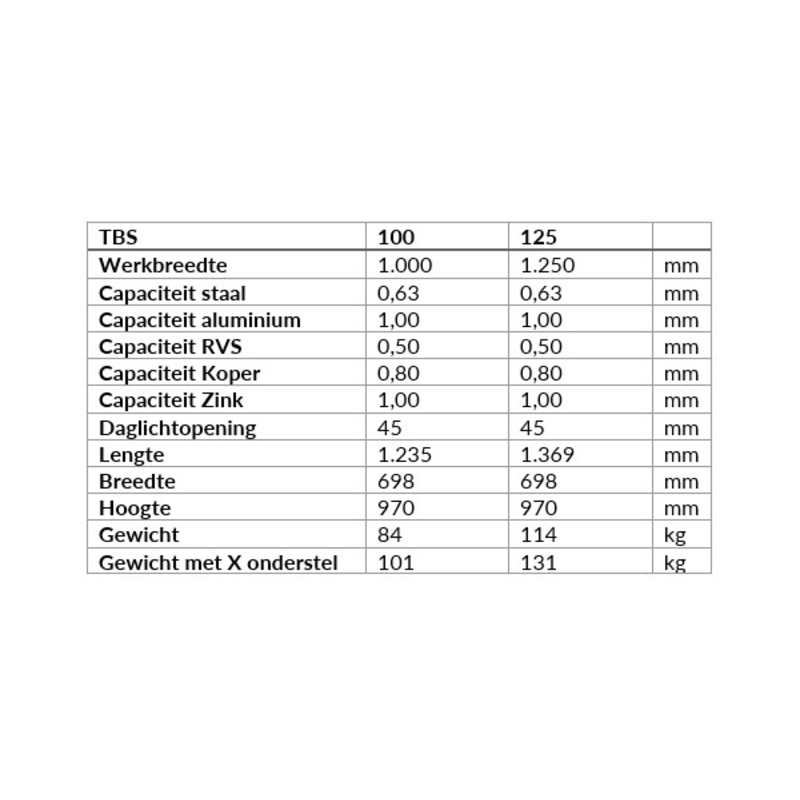

• Capacity: 1000 x 0.63 mm steel 400N/mm2, 0.8 mm copper and zinc; 1 mm aluminium
• 40 mm clearance height, upper beam with 45° fingers
• Upper, lower and bending beam segments Left and right 100 mm, 1x 30/40/60/70 mm, 2 x 50 mm, 5 x 100 mm
• Weight approx. 80 kg incl. optional X-frame

The ideal bench for the construction site, e.g. for bending standing seam roofs!
