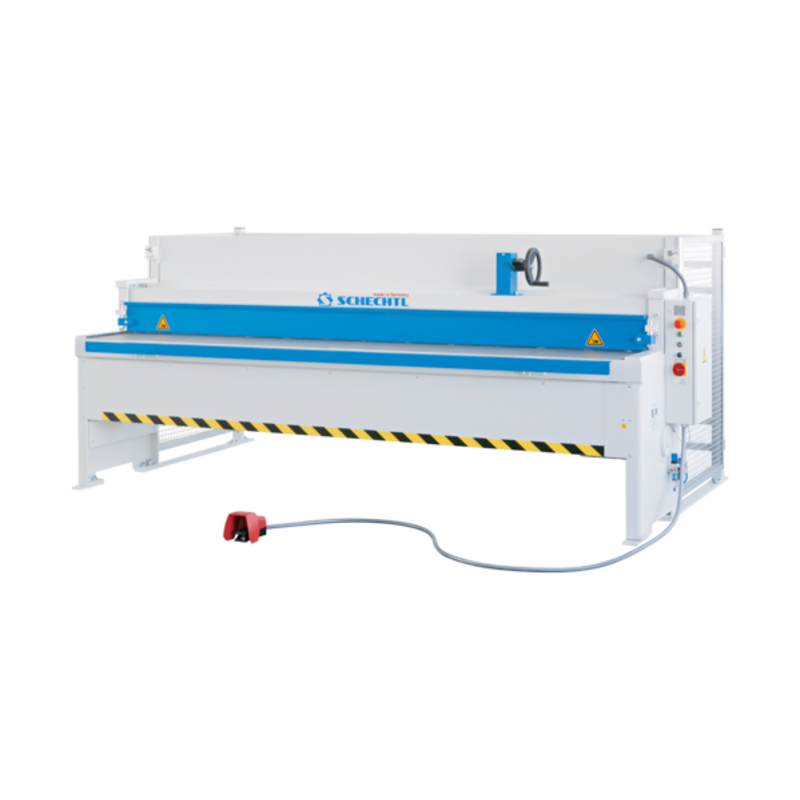

SCHECHTL Guillotine shear MSB 150

Op maat aan te passen | Binnen
SCHECHTL SCHECHTL Guillotine shear MSB 150 SCHECHTL SCHECHTL Guillotine shear MSB 150

Description

The Schechtl MSB 150 is the reinforced version of the SMT. It is even more solidly constructed than the SMT, which means higher cutting performance. The cutting material tray can be perfectly adapted to suit the material flow in your workshop – simply select the tilting table version which deposits sheets towards the front or towards the rear ex works.

Controls

  • BV
  • BVH
  • NC
  • NCH

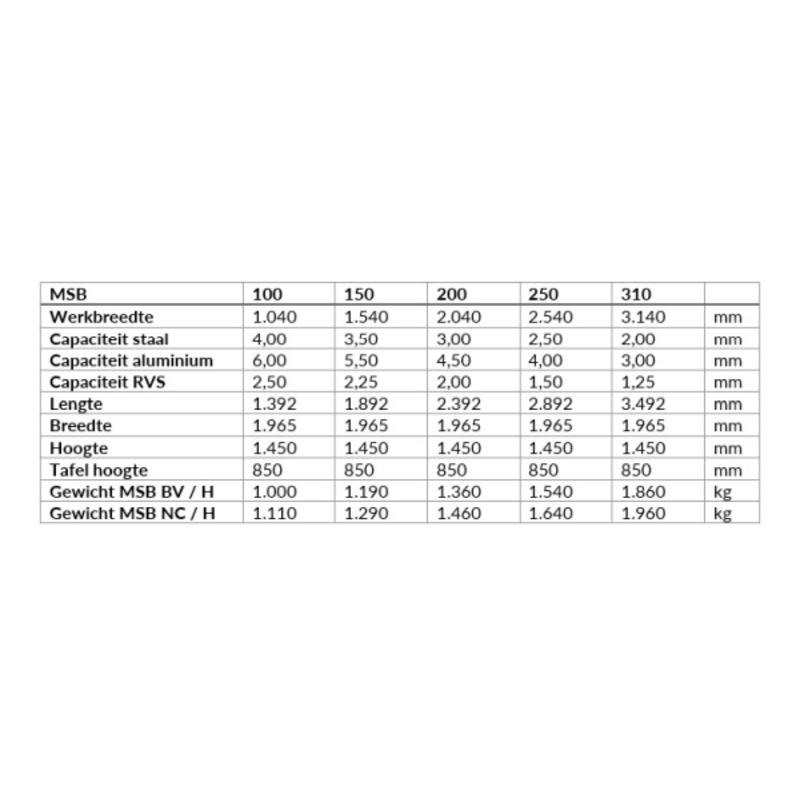

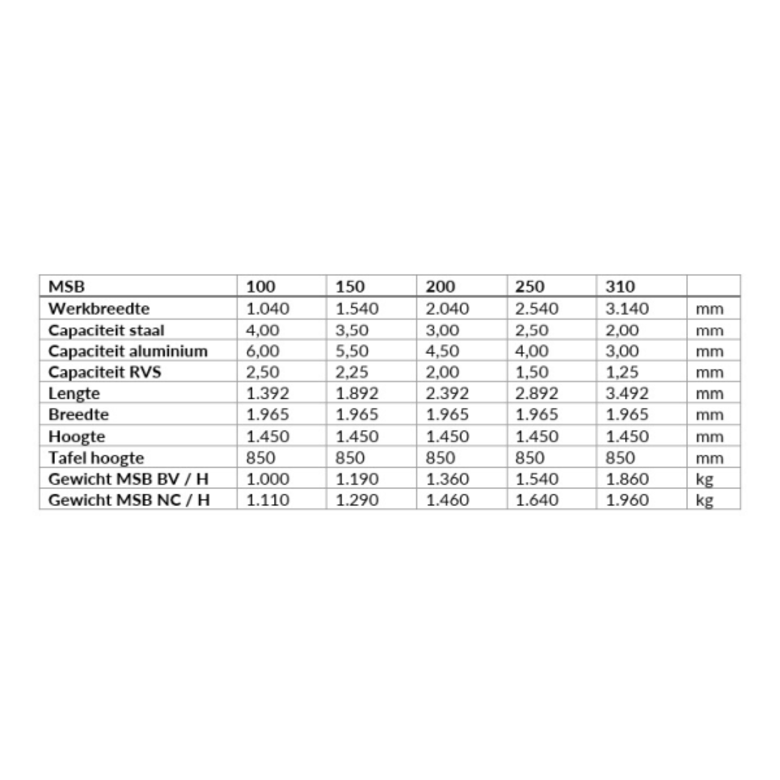

Specifications

  • Working width1540 mm
  • Capacity (St. 37)3,5 mm
  • Cutting angle2,88°
  • Strokes35/min
  • Back gauge750 mm
  • Table height850 mm
  • ControlBV, BVH, NC and NCH
  • Power supply3~400V
  • Engine power3 kW
Get in touch with one of our experts Get in touch with one of our experts

Get in touch with one of our experts

Questions about our machines or looking for a quick price indication? Send a message
Options

Options

  • Stainless steel shear blades
  • Blank wagon
  • Pneumatic hold down unit
  • Cutting gap illumination via LED
  • Mitre angle limit
  • Electronic position indicator
