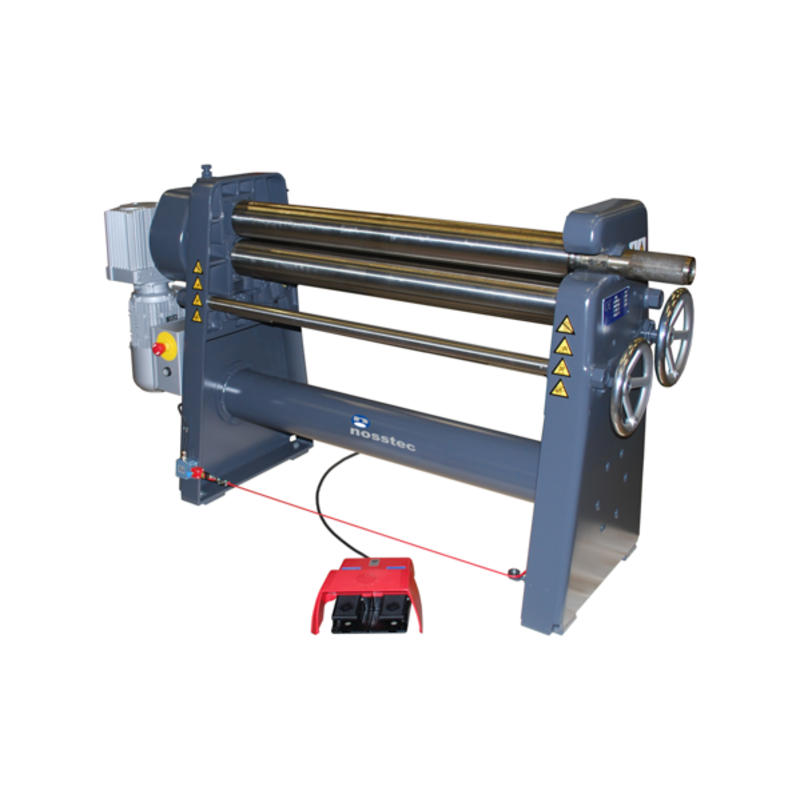

NOSSTEC Bending Roll Machine 8266

Op maat aan te passen | Binnen

Description

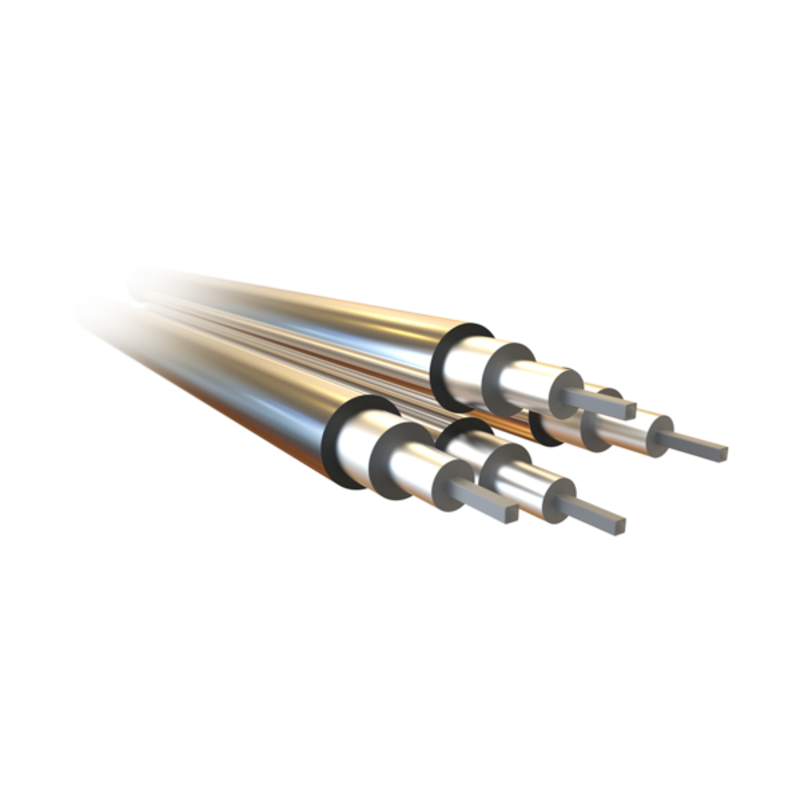

The NOSSTEC Bending Roll Machine 8266 is a stable plate roller with a compact design. Its many options make the machine universally applicable. The rollers are set up asymmetrically, which makes it possible to pre-bend. The rolls are bombarded against springing and made of special high-quality machine steel. The adjustment of the rollers is made precise with a hand wheel.

The drive is from the left side so that a rolled tube can easily be taken out on the right side. Special gearing allows a large gap between the clamping rollers. The stable construction of the plate roller makes it very suitable for precise rolling work.

Standard equipment:

  • Variable working speed
  • Double foot pedal forward and reverse
  • Stable roller adjustment with position indicator
  • Swing-out top roller
  • Brake motor
  • Emergency stop and pedal wire

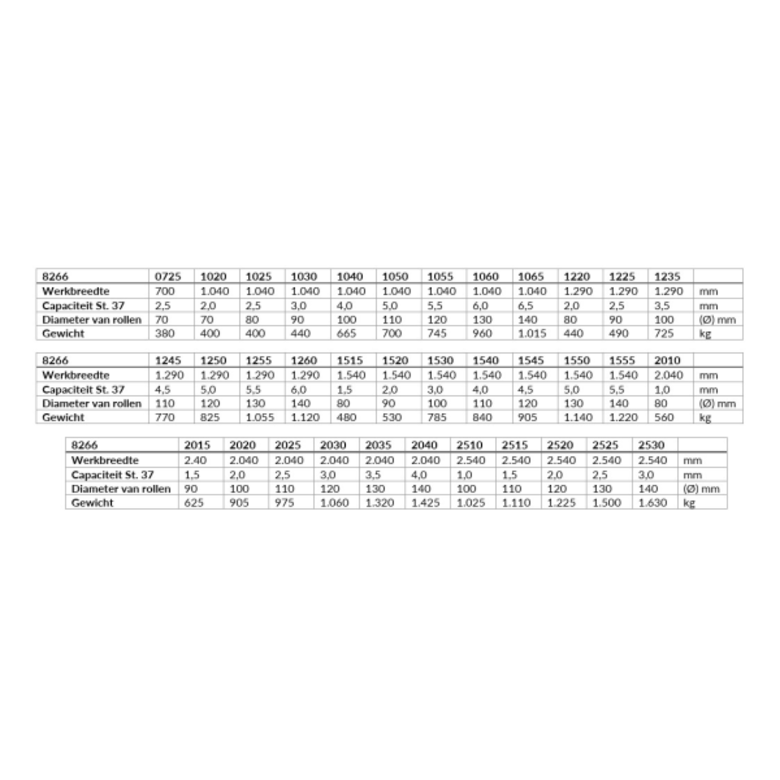

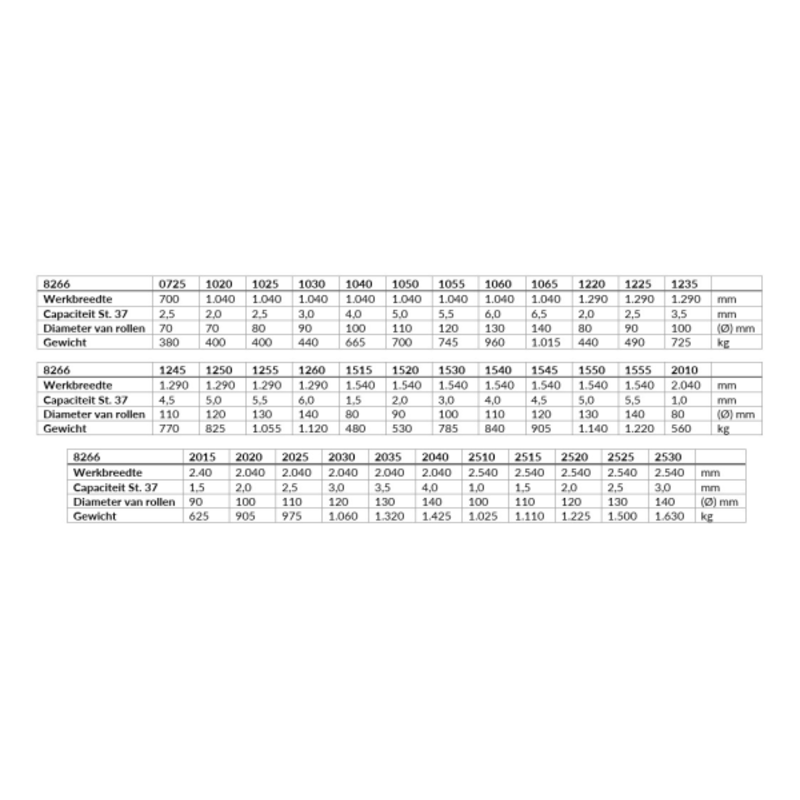

Specifications

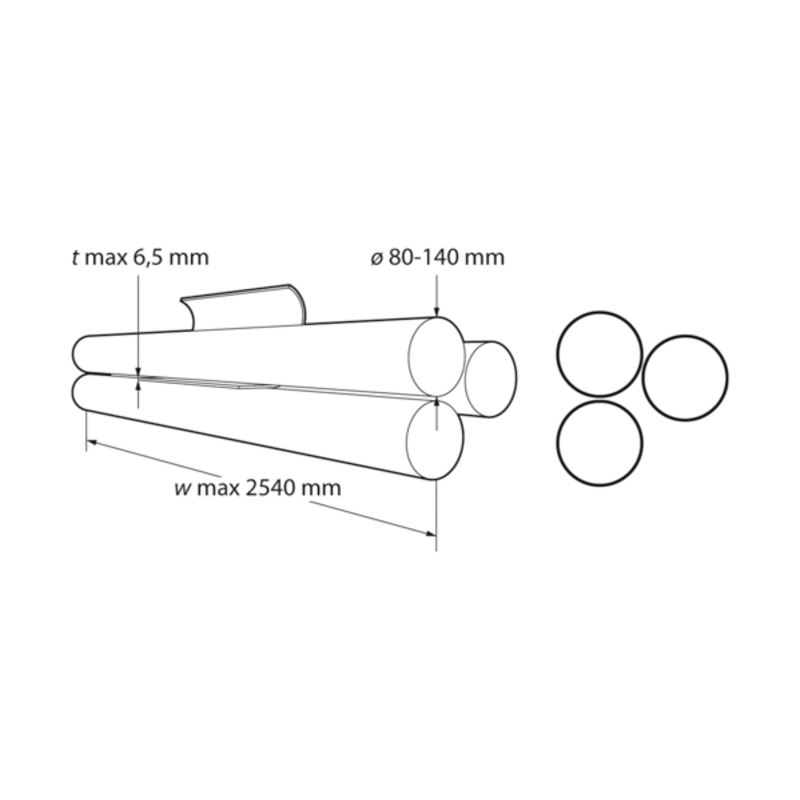

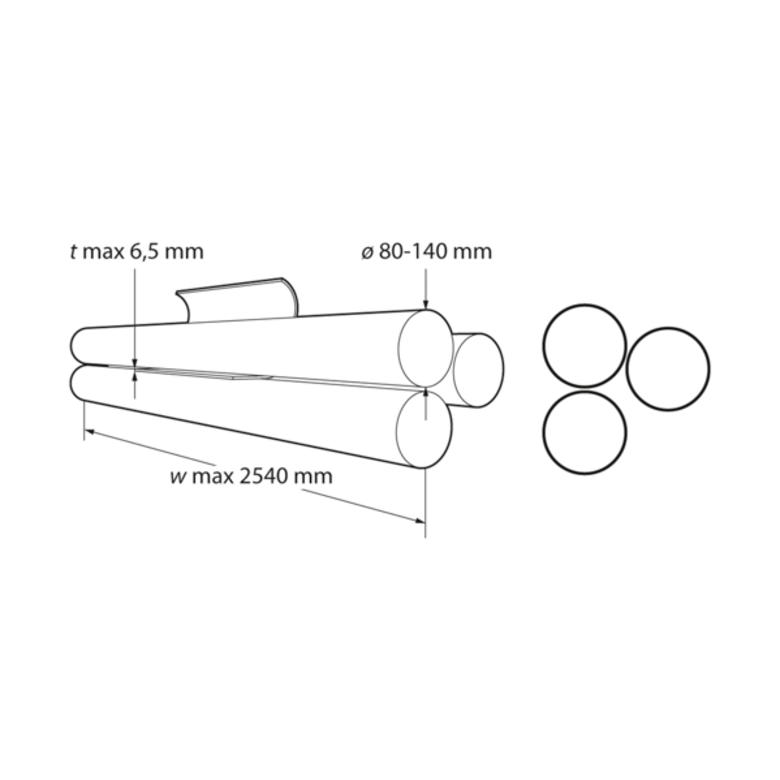

  • Working width700 to 2540 mm
  • Capacity (St. 37)1 to 6 mm
  • Diameter top roller70 to 140 mm
  • Role set-upAsymmetricall
  • Power supply1~230V
  • Engine power0,75 to 2,2 kW
Get in touch with one of our experts Get in touch with one of our experts

Get in touch with one of our experts

Questions about our machines or looking for a quick price indication? Send a message
Documentation

Documentation

nosstec-brochure.pdf
Options

Options

  • Hardened and ground rollers
  • Cone bending equipment
  • Motordriven rolls with panel
  • Digital readout of rollers
  • Digital length measurement
  • NC control
