NOSSTEC Bending Roll Machine 4132

Op maat aan te passen | Binnen

Description

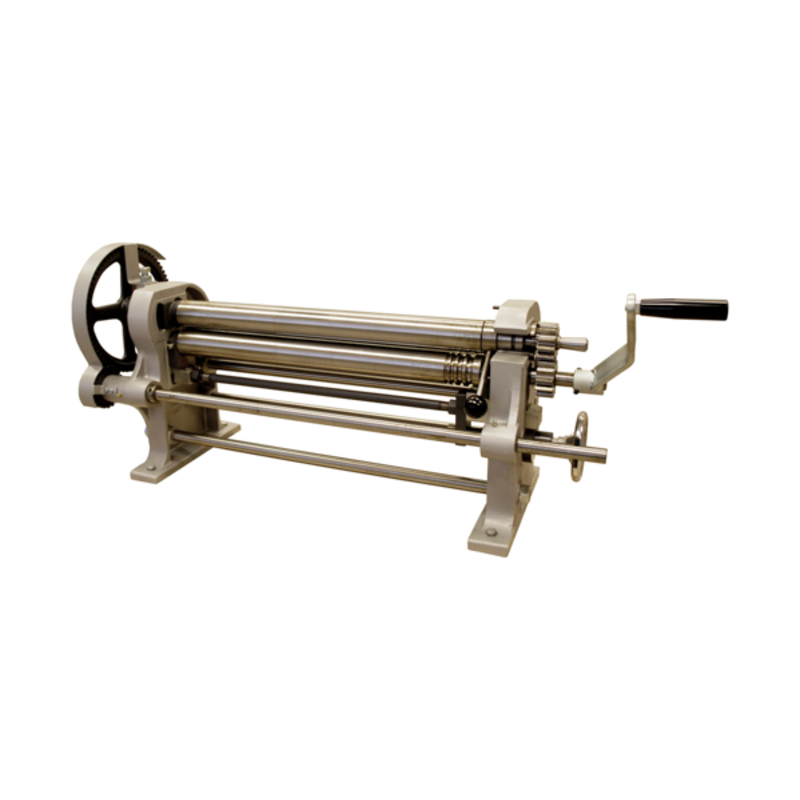

The NOSSTEC Bending Roll Machine 4132 is a manually operated machine with reduction gearing and drive on the left side. This ensures the rolls always turn clockwise, whether driven directly or via the reduction.

The top roll can be easily swung out to remove the rolled product.
The clamping roll is adjusted with a handwheel. Both the clamping and bending rolls have four different grooves on the right side of the machine for wire bending.
The bending roll is adjusted using a lever. For cone bending, the bending roll can be tilted.

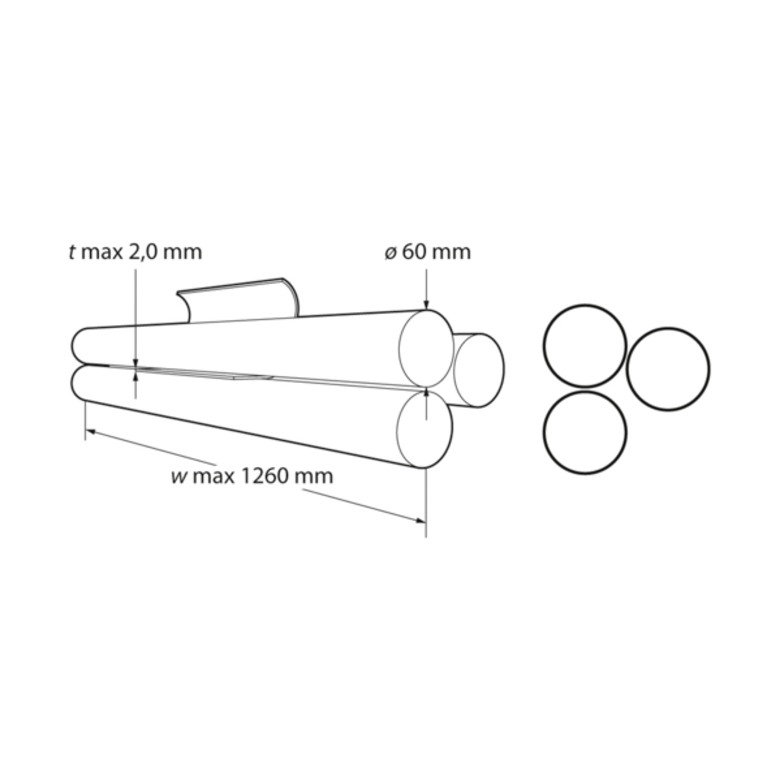

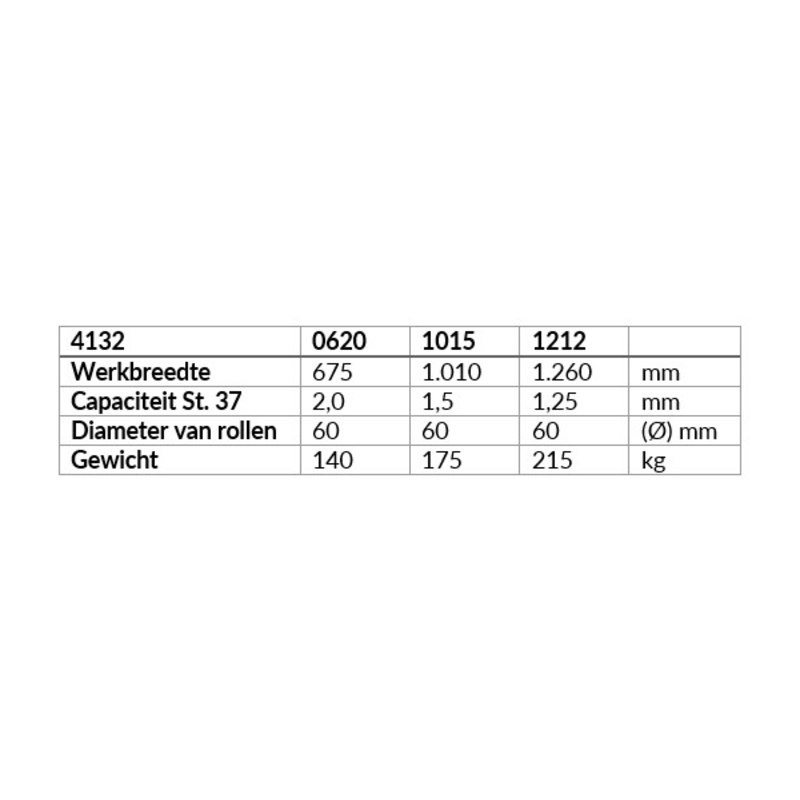

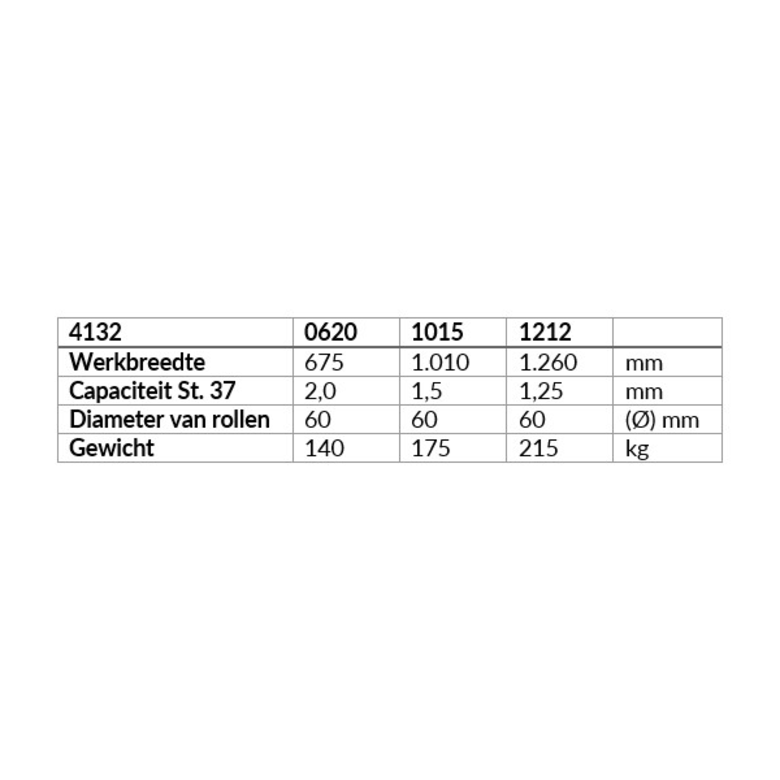

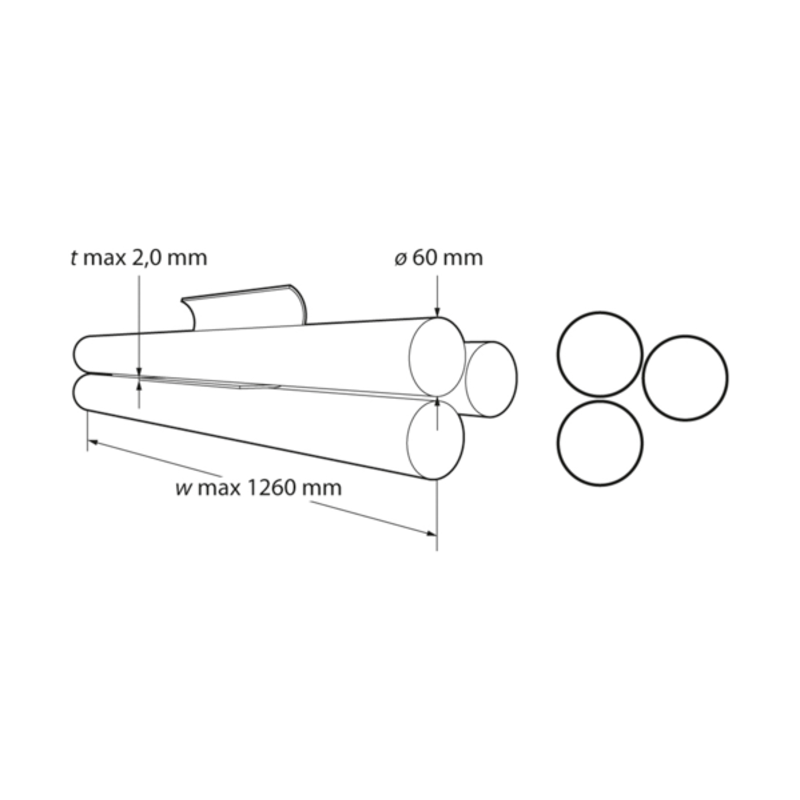

Specifications

  • Working width675 to 1260 mm
  • Capacity (St. 37)1,25 to 2 mm
  • Diameter top roller60 mm
  • Role set-upAsymmetricall
Get in touch with one of our experts Get in touch with one of our experts

Get in touch with one of our experts

Questions about our machines or looking for a quick price indication? Send a message
Documentation

Documentation

nosstec-brochure.pdf
Options

Options

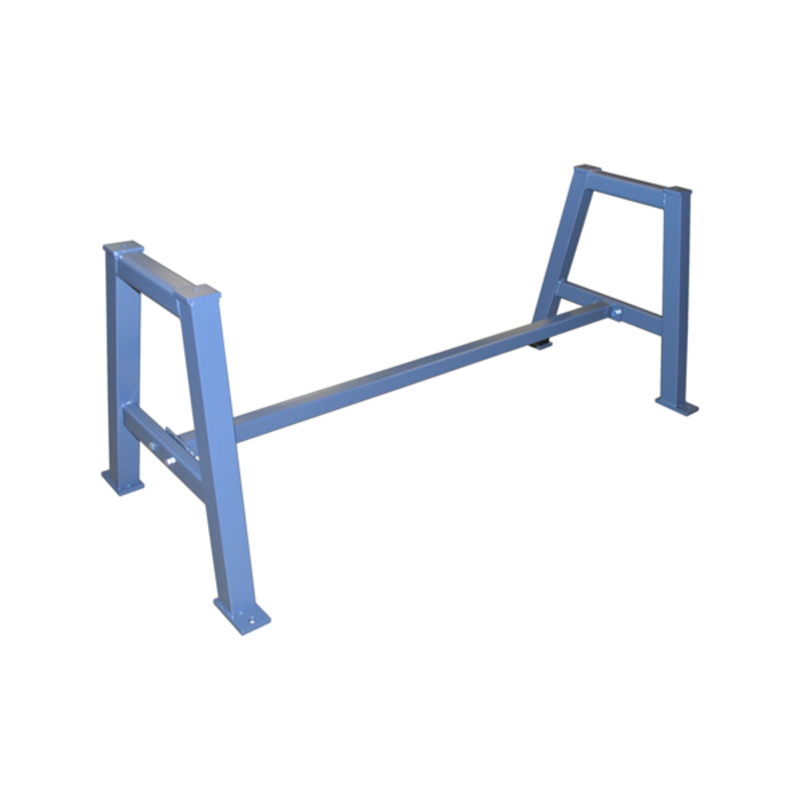

  • Machine foot
