JÖRG Snap Lock Press Brake 8301

Op maat aan te passen | Binnen

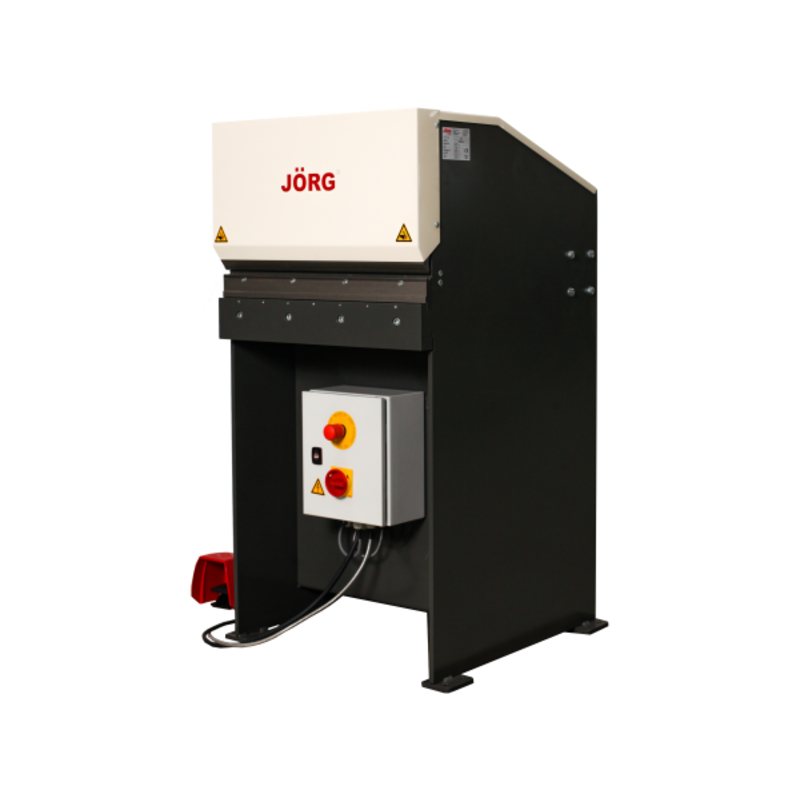

The JÖRG Snap Lock Press Brake 8301 is a hydraulic press brake For bending the male snap lock seam at fitting inner corners. This machine is specifically intended for rectangular fittings in the HVAC industry.

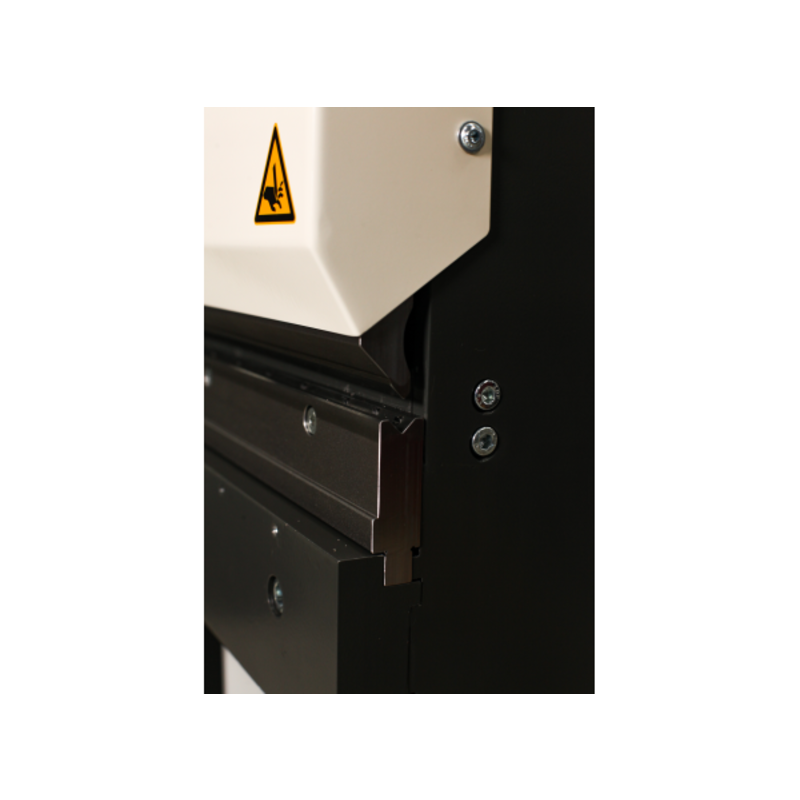

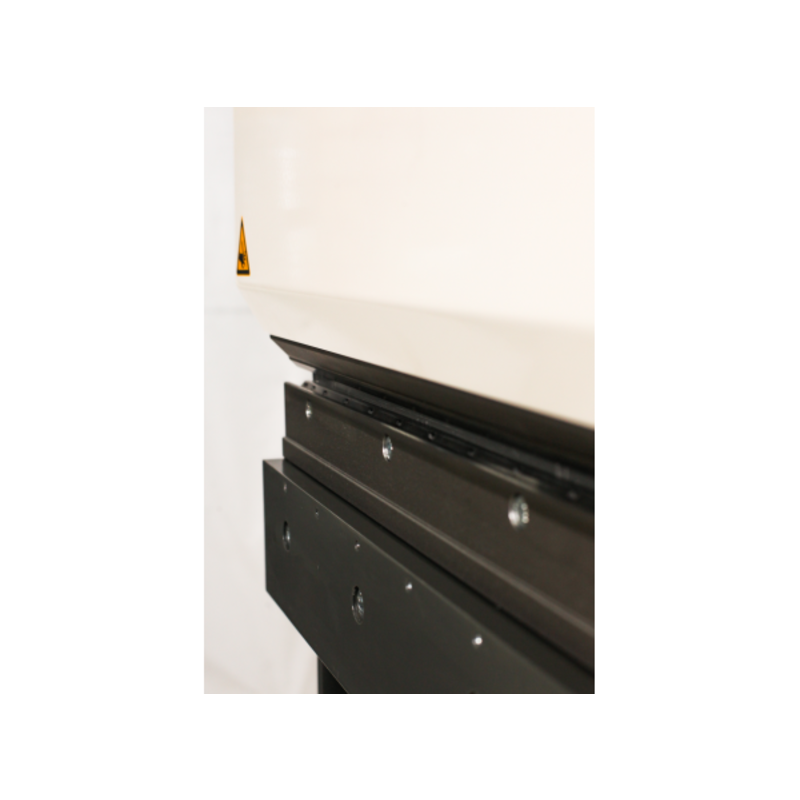

  • The upper punch moves vertically, the sheet is fed in horizontally from the front.
  • The working width is 620 mm, with a free opening at both sides
  • Hydraulic drive: 2 single acting cylinders with spring return
  • Foot pedal operated. If the foot pedal is not operated, the pump stops, and the upper punch moves up (open). Economical and quiet
  • Emergency stop and main power switch on the front
  • Made in the Netherlands
  • Snap Lock male seam
  • Press force: 15 tons, suitable for bending 1,25 mm St 37 over the full length, simultaneously 15 snap lock notches are made.


  • Capacity (St. 37)1,2 mm
  • Press force15 Ton
  • Seam height10 mm
  • ExecutionHydraulic
  • Working width620 mm
  • Working height900 mm
  • Power supply\3~400V
Get in touch with one of our experts Get in touch with one of our experts

Get in touch with one of our experts

Questions about our machines or looking for a quick price indication? Send a message




  • Also available for Pittsburgh seam
