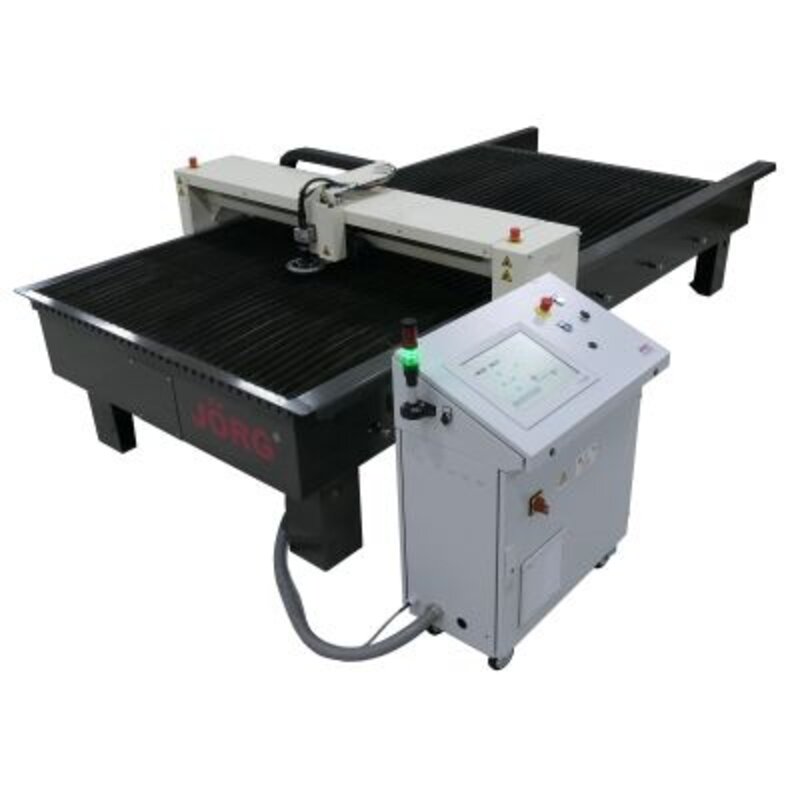

JÖRG Plasma Cutting Machine 9523

Op maat aan te passen | Binnen


The JÖRG Plasma Cutting Machine 9523 is a robust all-in-one CNC plasma cutting machine specially designed for the Insulation and HVAC industry, it’s small mono block design provides a small foot print so that the machine is also suitable for small workshops. This update replace it predecessor models 9513, 9514 and 9516 which were an update of the former PQC  (Plasma Quick Cut) models and these new models are now 100% Dutch Designed and Assembled machines.


  • All-in-one design, self-supporting X-Y frame
  • Robust cutting machine suitable for harsh production environment
  • Suitable for communication with HVAC software, e.g. CAMDUCT or EUROSOFT
  • Modern EUROSOFT Ethercat controller with Touch screen
  • Torch positioning via stable Rack Pinion drive system
  • Floating head torch sheet support trough roller balls
  • Simple pneumatic Z-axis lifter
  • Magnet torch holder preventing collision and for easy consumable change
  • Edge angled slats for light sheet transport
  • Table = dust tray means no dust on the floor only in the table
  • 6-Zone divided work table, only torch section will be extracted during cutting
  • Integrated exhaust duct over the full table length, exhaust holes are covered
  • 2 exhaust connections Ø 250mm, one at the bottom the table
  • Compact design suitable for small workshops
  • Easy in use
  • Low maintenance

Standard execution

  • EUROSOFT Ethercat controller
  • Thermacut Plasma unit 45 HD
  • Zero datum detectors
  • Ethernet RJ 45 network connection
  • English operator manual


  • Type9523
  • Dimensions worktable1550 x 3100 mm
  • Capacity (St. 37)up to 10 mm
  • Max. cutting speed11 m/min
  • Drive X and Y axisServo motor
  • Drive Z axisPneumatic cylinder
  • Plasma sourceThermacut plasma unit 45 HD
  • ControlEUROSOFT Ethercat
  • Power supply3~400V
  • Operating pressure4,5 bar
  • Air consumption90 l/min
