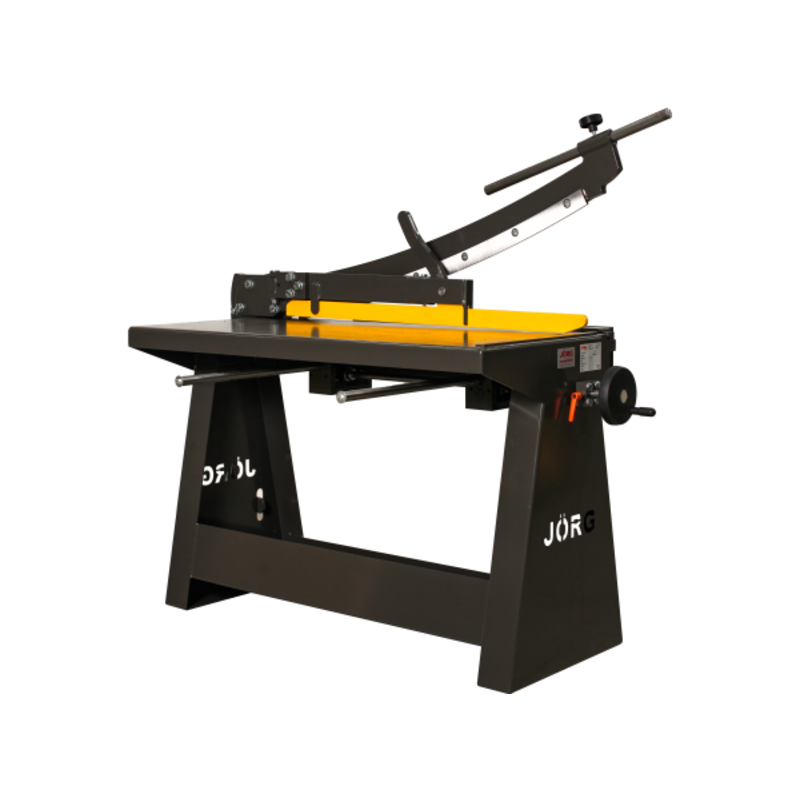

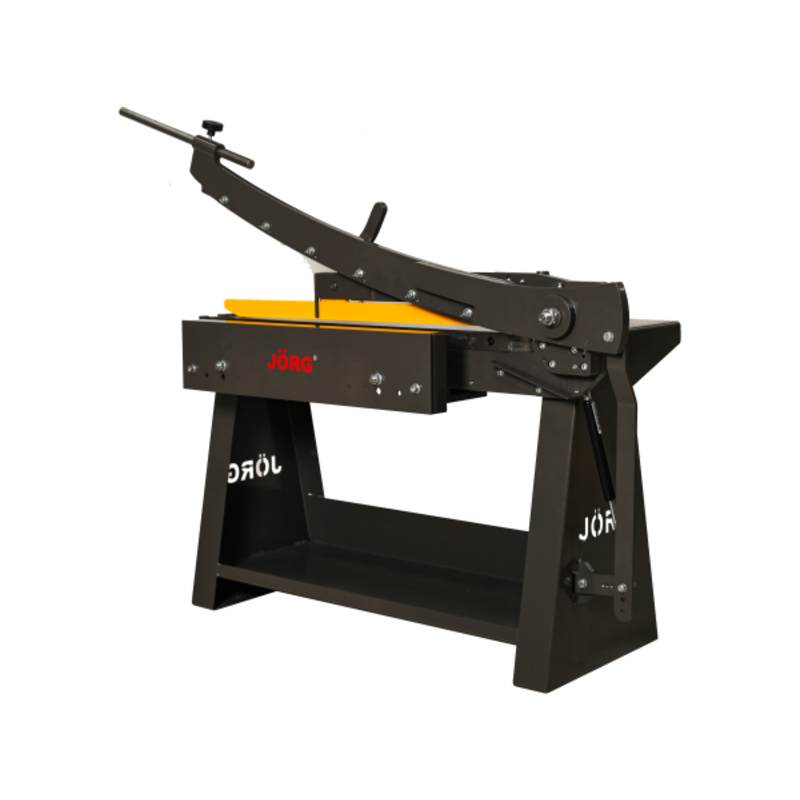

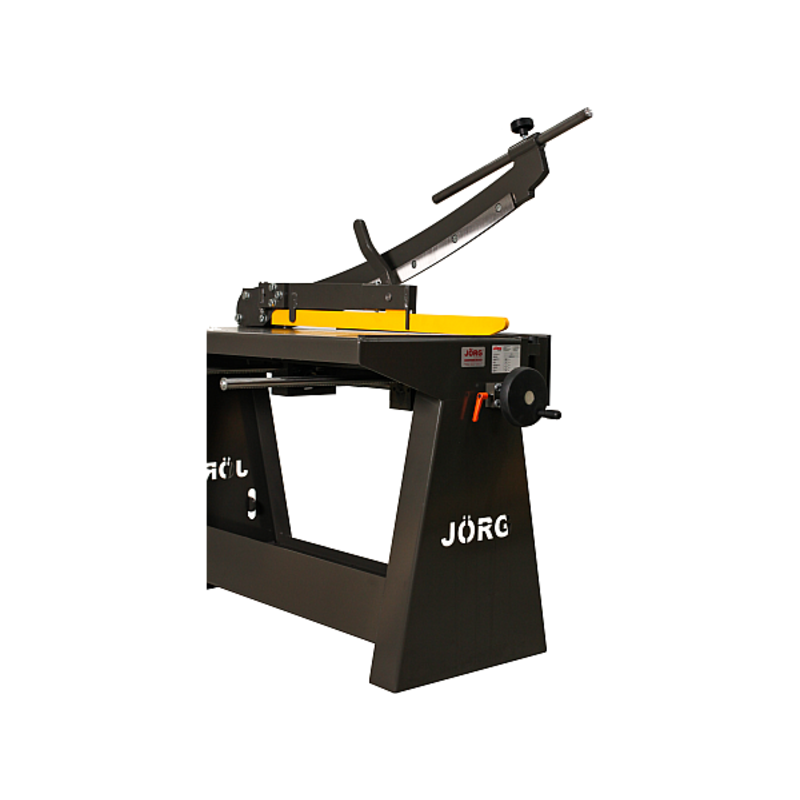

JÖRG Lever shear 4111

Op maat aan te passen | Binnen

Description

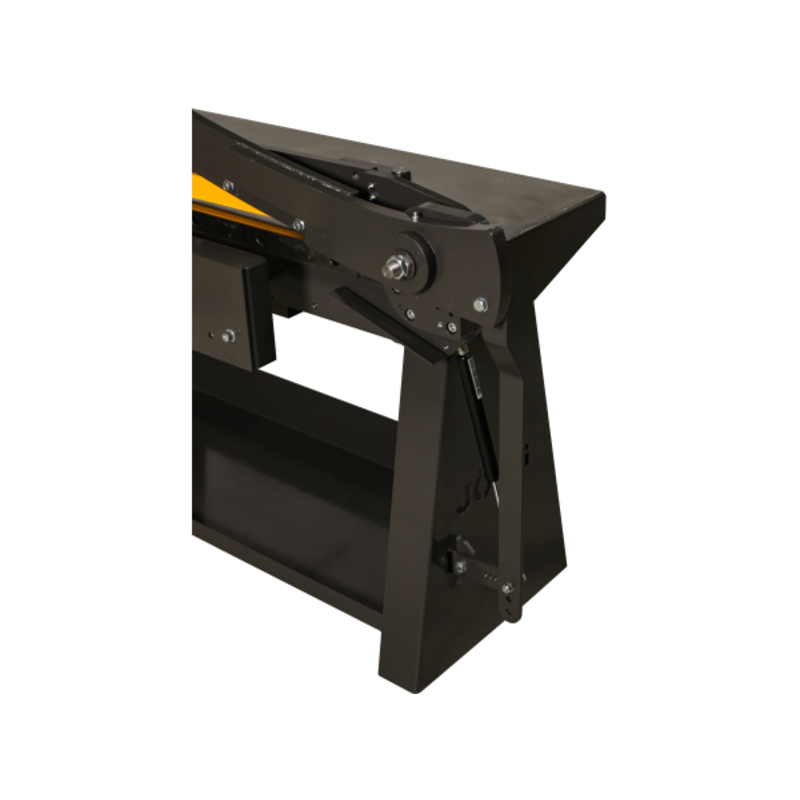

The JÖRG Lever Shear 4111 is exceptionally suitable for cutting thin sheet. The lever mechanism is light in operation due to a powerful spring. The absence of a counterweight keeps the machine compact.

The back gauge has a range up to 650 mm, is easily adjustable with the hand wheel, and can be locked. The work table has a convenient perpendicular guide mounted on it for making perpendicular cuts to sheet material.

Comes with highquality blades, which retain their sharpness, mounted as standard. A Jörg machine that has proven its quality and purpose in practice. The JÖRG Lever shear 4111 is a throatless shear, with which long cuts can be made. The sheet is clamped using a manual hold down.

Specifications

  • Working width1020 mm
  • Capacity (St. 37)1,5 mm
  • Back gauge0 - 680 mm
  • Tafelhoogte850 mm
Get in touch with one of our experts Get in touch with one of our experts

Get in touch with one of our experts

Questions about our machines or looking for a quick price indication? Send a message
Documentation

Documentation

joerg-folder.pdf#page=14
Options

Options

  • Spare blades
  • Adjustable machine feet
