JÖRG Guillotine shear JRGM 1560

Op maat aan te passen | Binnen

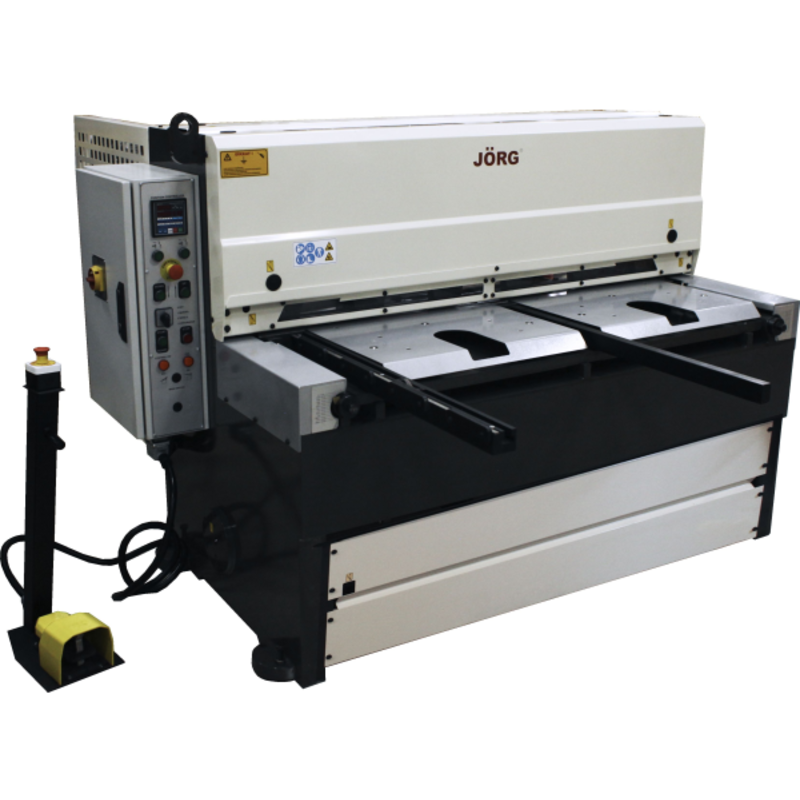

The JÖRG Guillotine Shear JRGM 1560 is a mechanic driven plate shear. The blades have an adjustable cutting clearance, making these shears great for cutting differtent sheet thicknesses.

Standard version:

  • NC motorized back gauge, 750 mm
  • Rear safety screens with photocells
  • Finger protection with a view of the cutting line
  • LED cutting line lighting
  • Front support arms for plate support
  • Table with ball pots
  • Foot pedal with emergency stop
  • Cutting gap adjustment
  • Angled gauge with T-slot, tilt stop and ruler
  • Stroke counter
  • Heavy drive

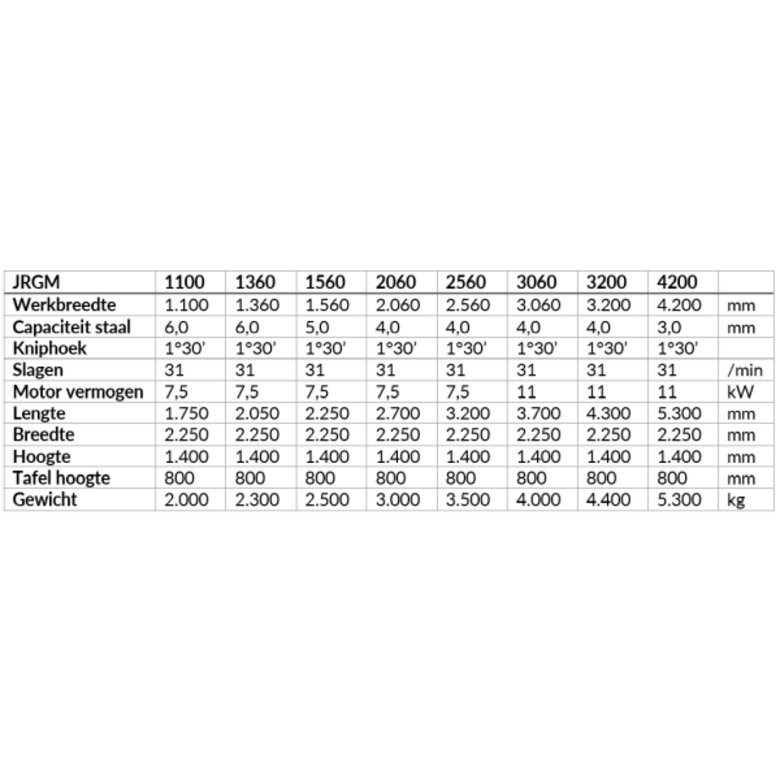

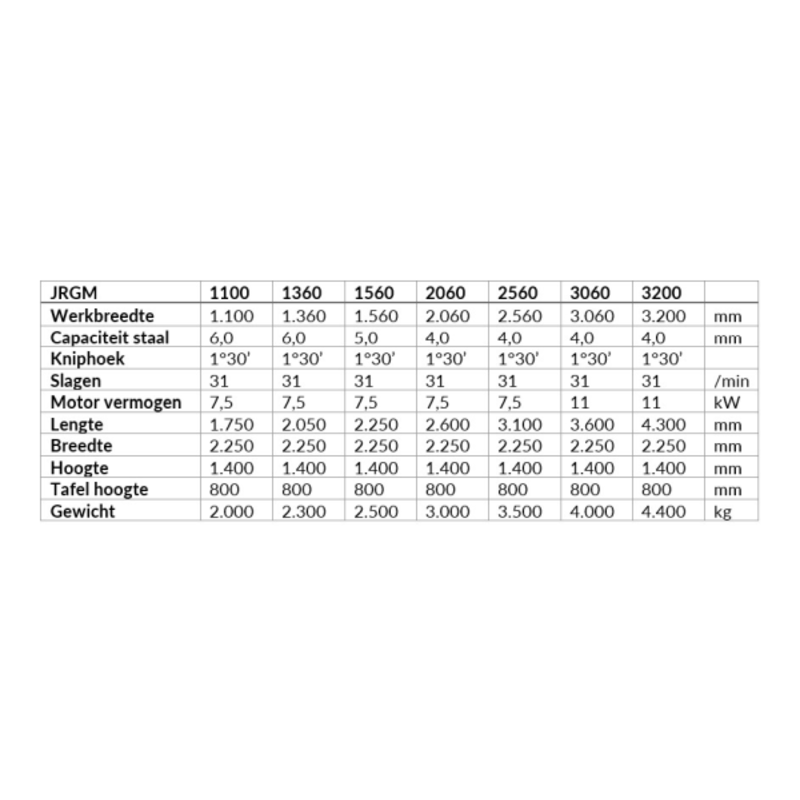

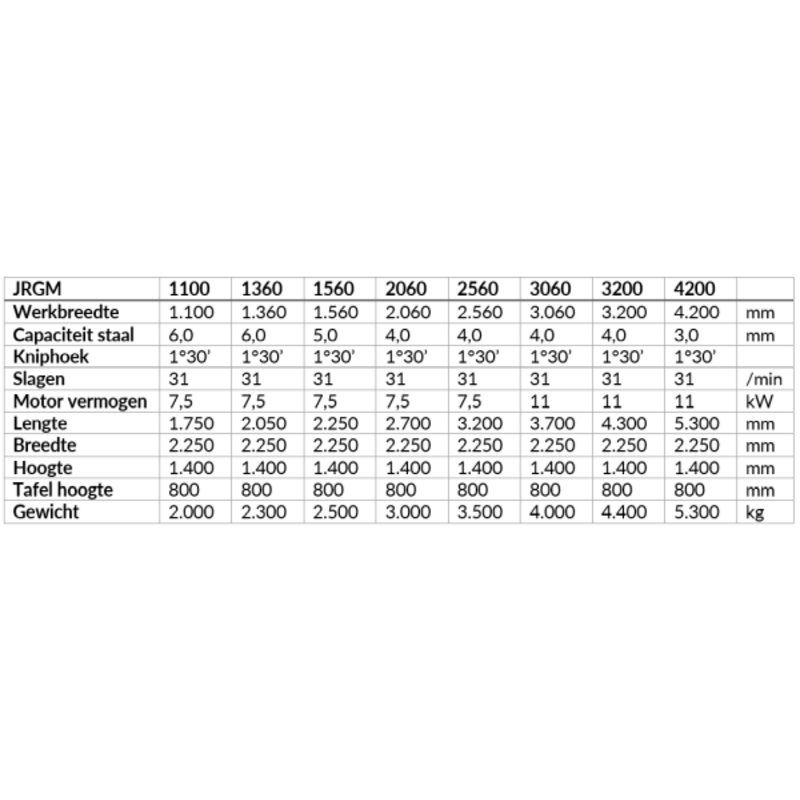

  • Working width1560 mm
  • Capacity (St. 37)5 mm
  • Cutting angle1,30°
  • Strokes31/min
  • Back gauge750 mm
  • Table height800 mm
  • ControlNC
  • Power supply3~400V
  • Engine power7,5 kW
Get in touch with one of our experts Get in touch with one of our experts

Get in touch with one of our experts

Questions about our machines or looking for a quick price indication? Send a message




  • NC motorized back gauge 1000 mm
  • Adjustable angle stop 0-180°
  • Set of blades suitable for stainless steel
  • Pneumatic plate high support discharging backwards
  • FUJI touchscreen
Een op maat gemaakte machine? Send a message
