Description

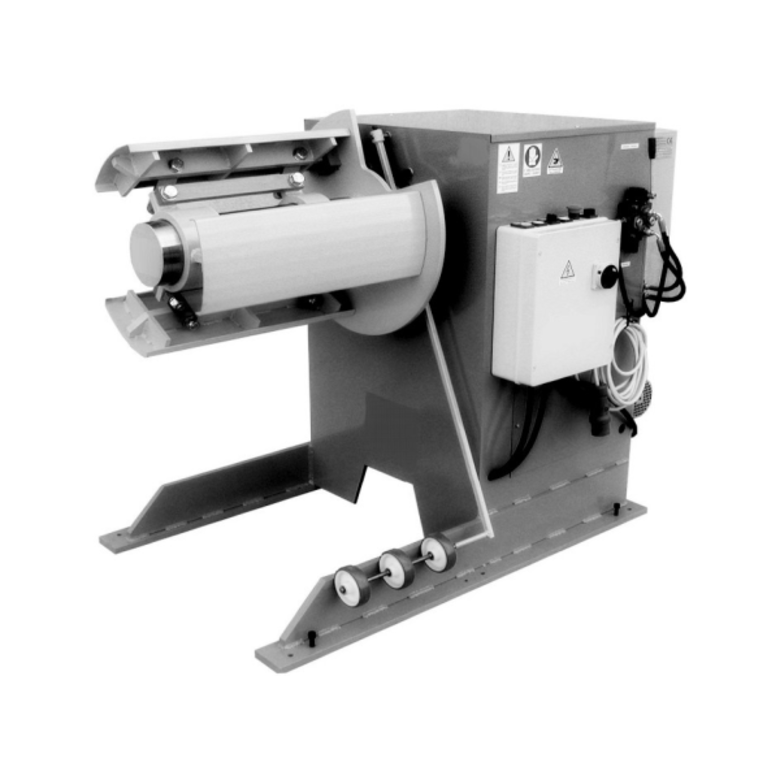

The JÖRG Decoiler ASM Motorized, cantilever fully steel welded frame and adjustable brake to prevent auto unwinding. The mandrel is selve centering so that different coil ID are simple to change. Cantilever, Coils can be easy changed.

Standard excution:

• Hydraulic expandable mandrel
• Motor with frequency control for speed adjustment
• Dansing arm for automatic operation in “start-stop” mode
• Electric panel with forward/reverse pushbuttons for manual operation
• Shaped drum segments with inside stiffeners
• Coil outward diameter max.: 1500mm
