JÖRG Cut to Length line 4923

Op maat aan te passen | Binnen

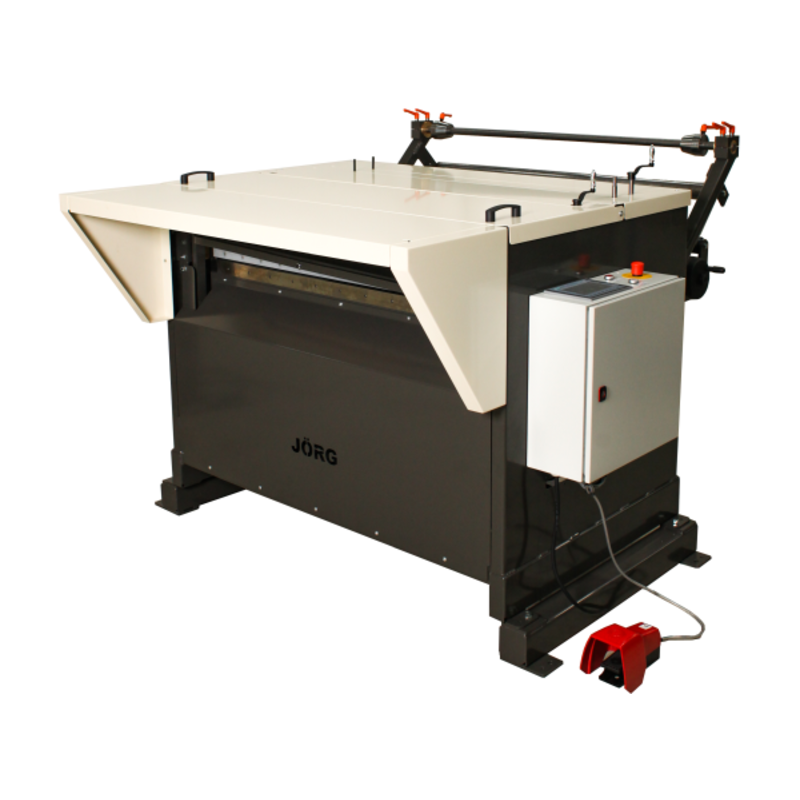

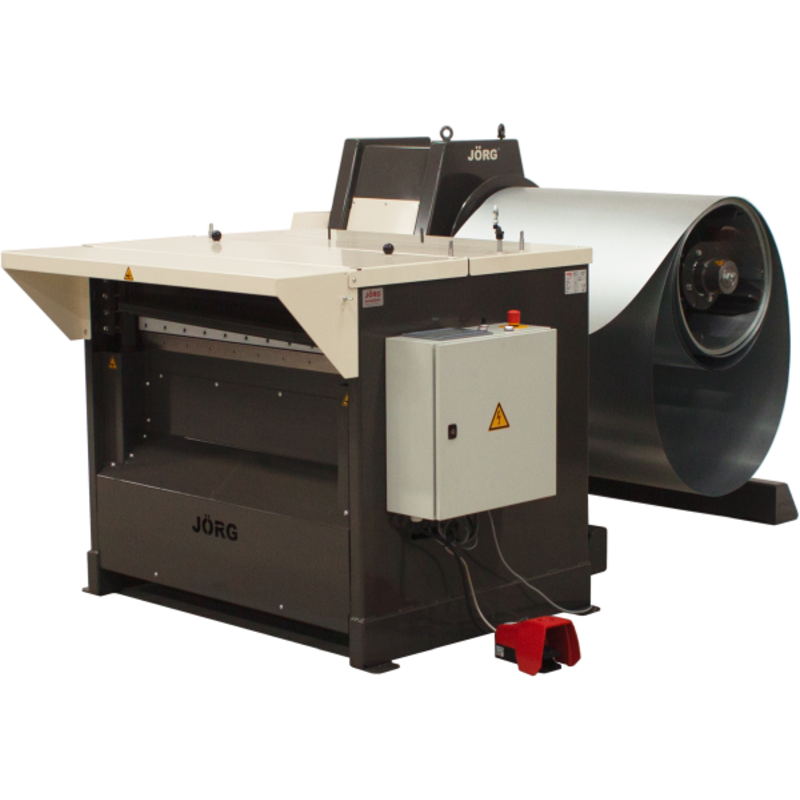

The JÖRG Cut to Length line 4923 is a compact machine for the decoiling, straightening, slitting, and cutting of rolls of zinc, copper, steel, aluminium, stainless steel, and other metals. Fully welded steel construction, compact design with electronic controls.

The machine is standard equipped with the following components:

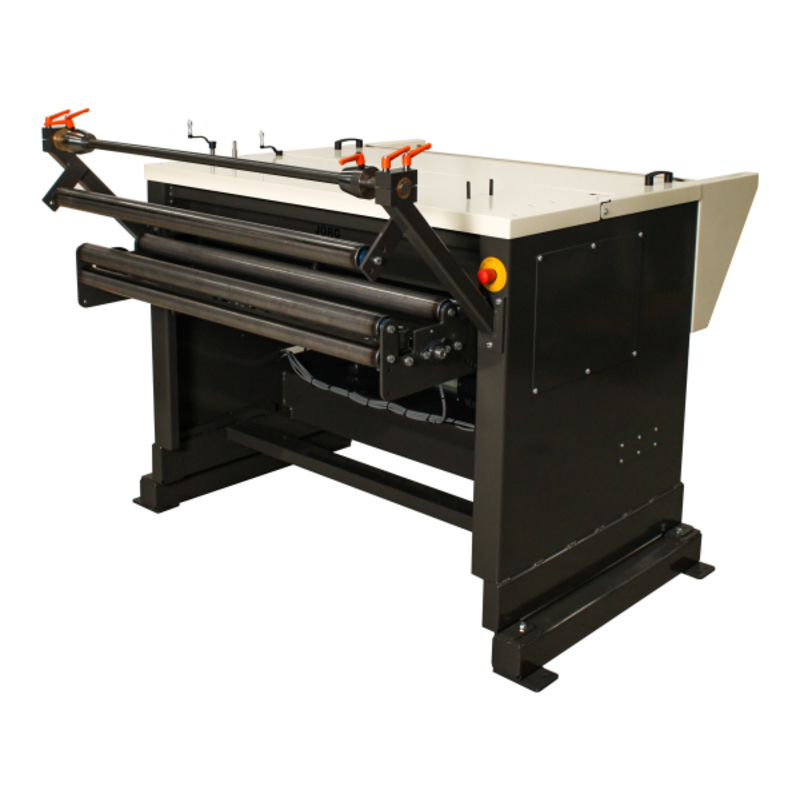

  • Straightening unit with 4 rolls and 2 vulcanised feeding rolls, gear driven

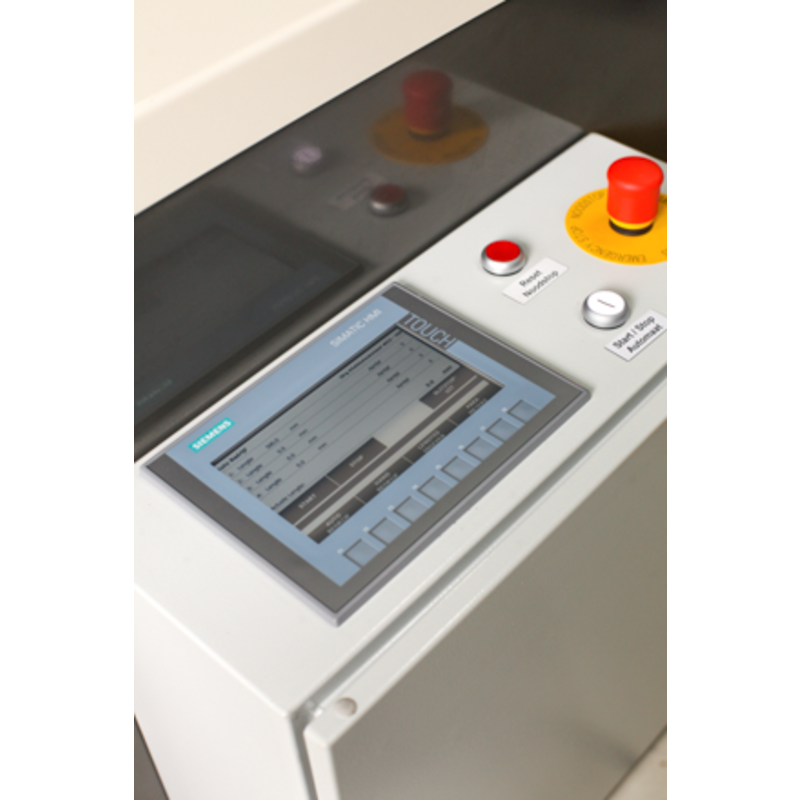

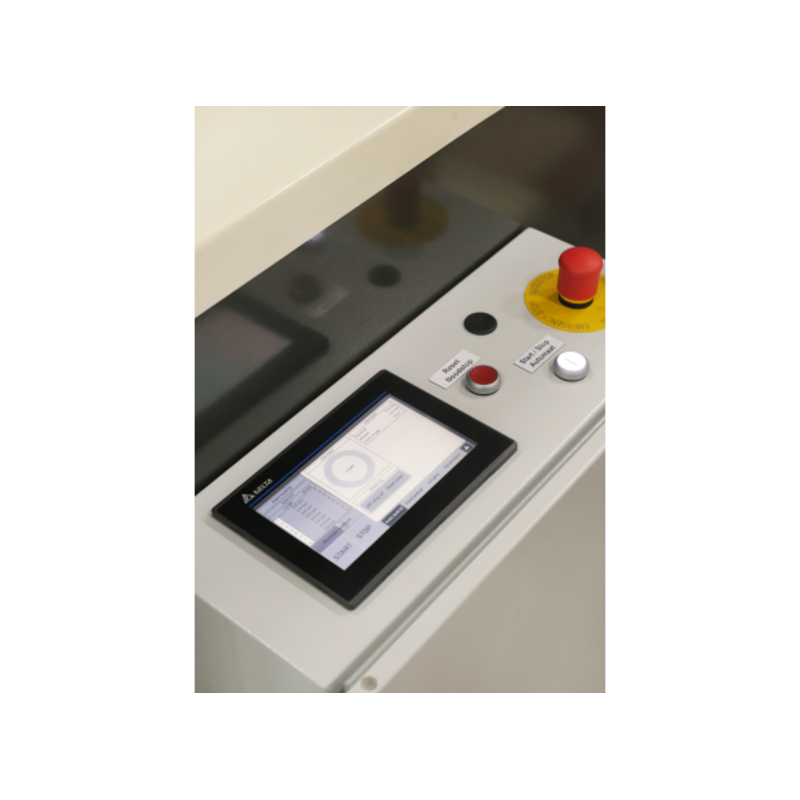

  • PLC-control: easily programmable with 4 program lines for length and quantity

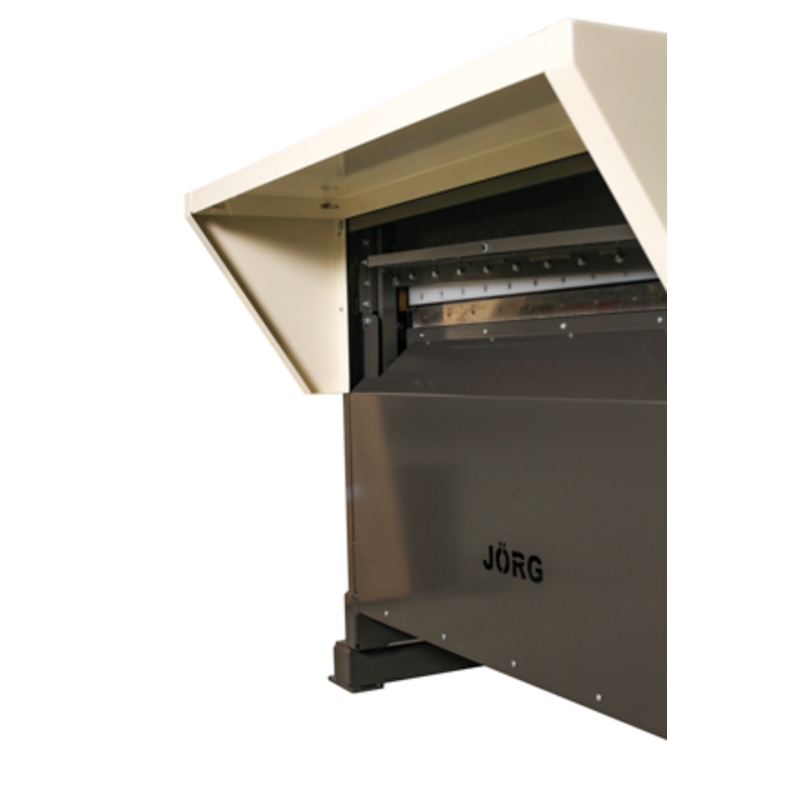

  • Stable mechanical guillotine shear
  • Length measuring with wheel and encoder

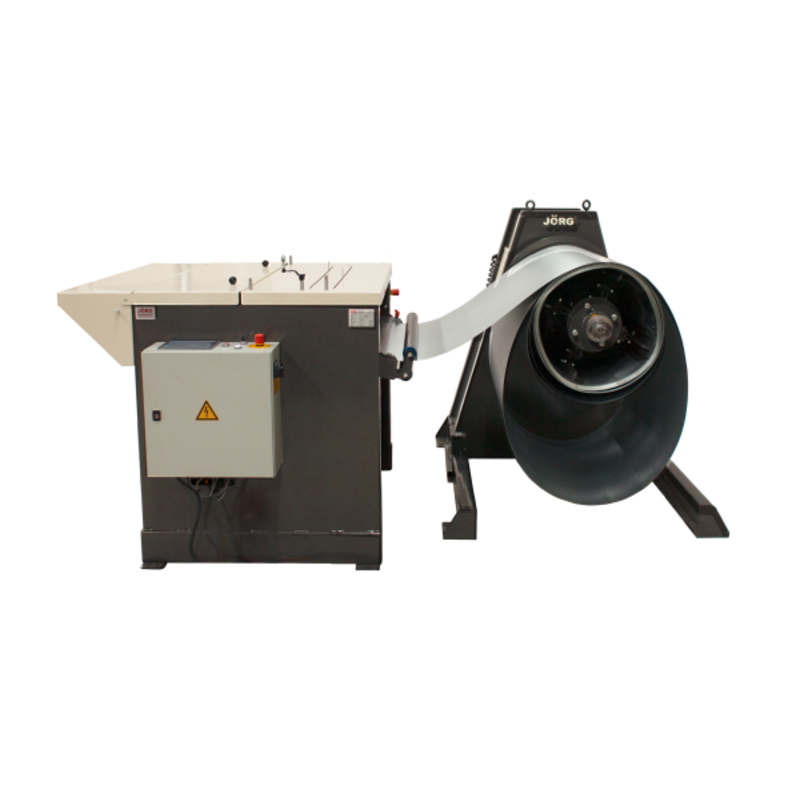

  • Coil carrier on castor wheels, with tilting function


  • Working width1270 mm
  • Capacity (St. 37)1,25 mm
  • Aantal richtrollen4
  • Max. coil weight300 kg
  • Working speed12 m/min
  • Power supply3~400V
  • Engine power1,5 kW
Get in touch with one of our experts Get in touch with one of our experts

Get in touch with one of our experts

Questions about our machines or looking for a quick price indication? Send a message




  • Divers coil carriers
  • Hardened rolls for stainless steal
  • Sheet width adjustment with wheel
  • Slitting unit including 2 sets of slitting knives
  • Extra set of slitting knives
  • Divers decoilers
Een op maat gemaakte machine? Send a message
