JÖRG Beading Machine Industrial 5729

Op maat aan te passen | Binnen

Description

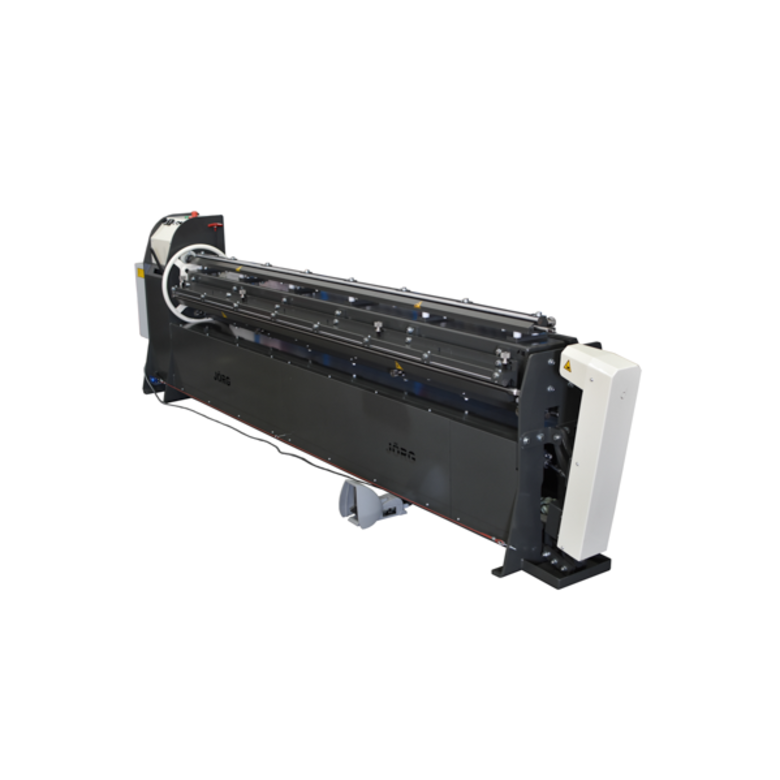

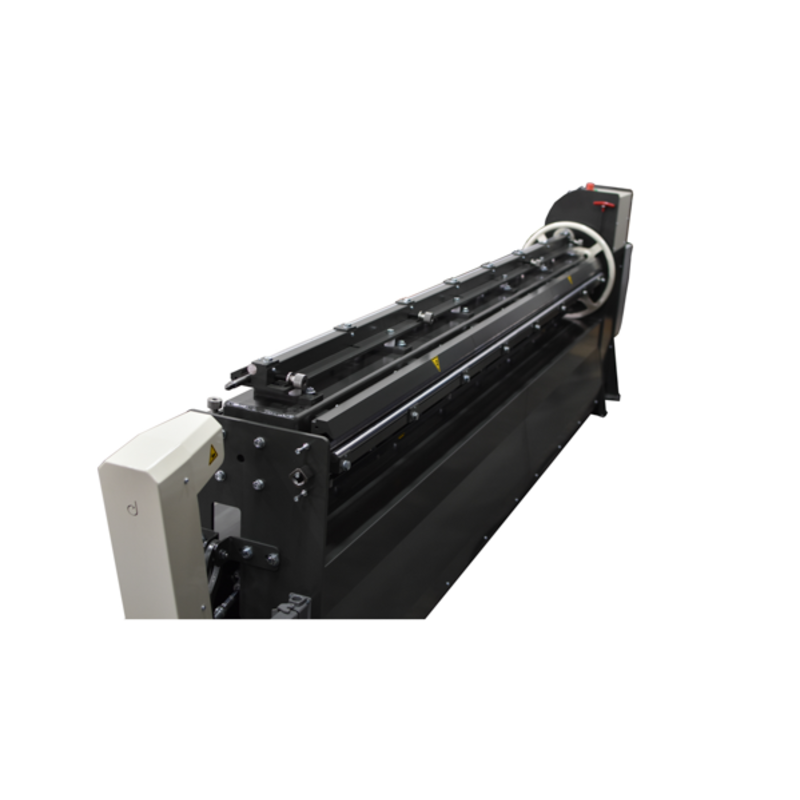

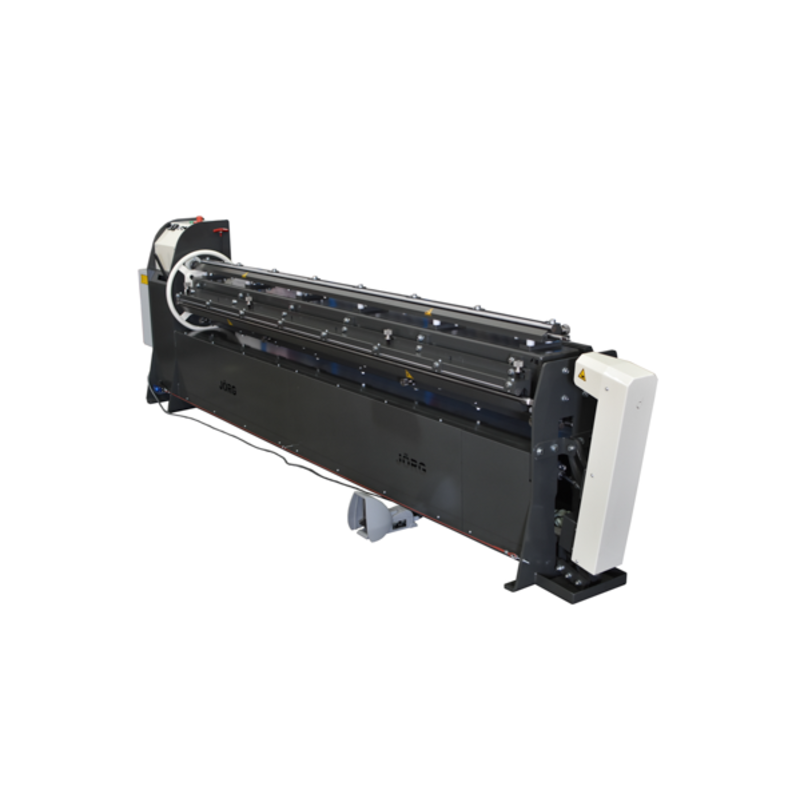

The JÖRG Beading Machine Industrial 5729 is designed for the fast and efficient processing of three to six metre lengths of zinc, copper, plasticol, etc. The machine offers a high level of user friendliness. The machine is equipped with a powerful motor and at an ideal height, so that the operator always has a good overview of the beading process. This, among other things, makes working with this machine quick and safe. The configuration of the beading bar and the flexible drive of the beading rod are unique. This creates a reliable beading process with few failures and good discharge. The hardened chrome infeed side of the beading bars prevents scratches on zinc. Heavy and sturdy construction for long and reliable use.

Water barrier: Besides beading, the machine can also be used to make a water barrier on the sheet.

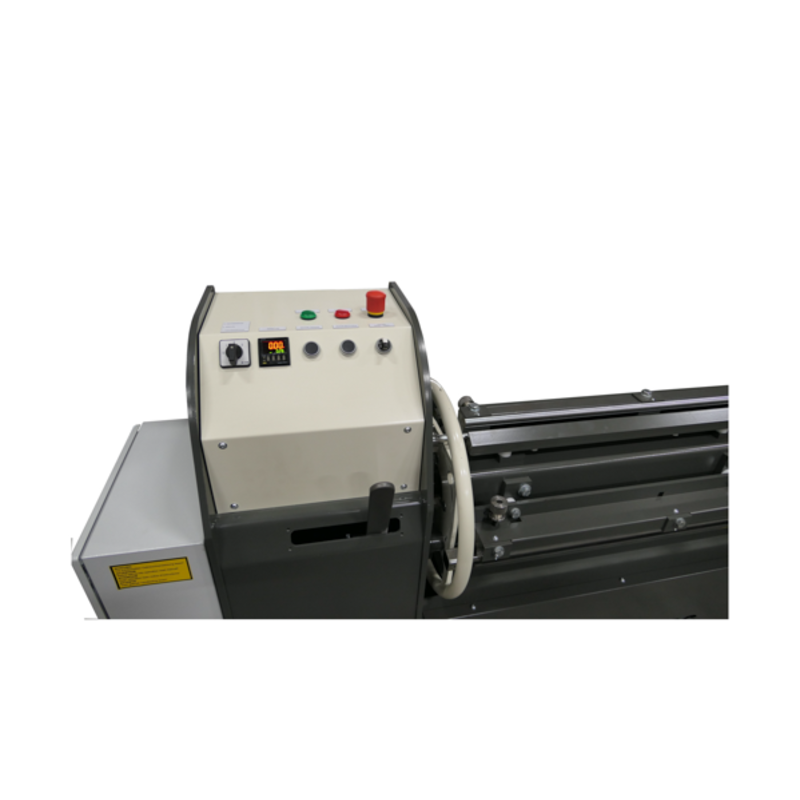

PLC control: The machine is controlled by a PLC for reliable and accurate functioning!

Included as standard:

  • Digitally adjustable beading angle
  • Foot pedal
  • Manual and automatic operation
  • Lamp indicator beading machine position
  • Low-maintenance
  • High beading speed
  • Holder for additional beading rods

Designed by JÖRG, Made in the Netherlands!

Specifications

  • Working width6020 mm
  • Capacity (Zinc)0,8 mm
  • Beading barsØ 18 - 25 mm
  • Power supply3~400V
  • Engine power3 kW
  • Compressed airmax. 6 bar
Get in touch with one of our experts Get in touch with one of our experts

Get in touch with one of our experts

Questions about our machines or looking for a quick price indication? Send a message
Documentation

Documentation

joerg-folder.pdf#page=36
Options

Options

  • Beading device for small beading bars 16, 18, 20, 22 and 25 mm
  • Beading device for big beading bars 28, 30, 35 en 40 mm

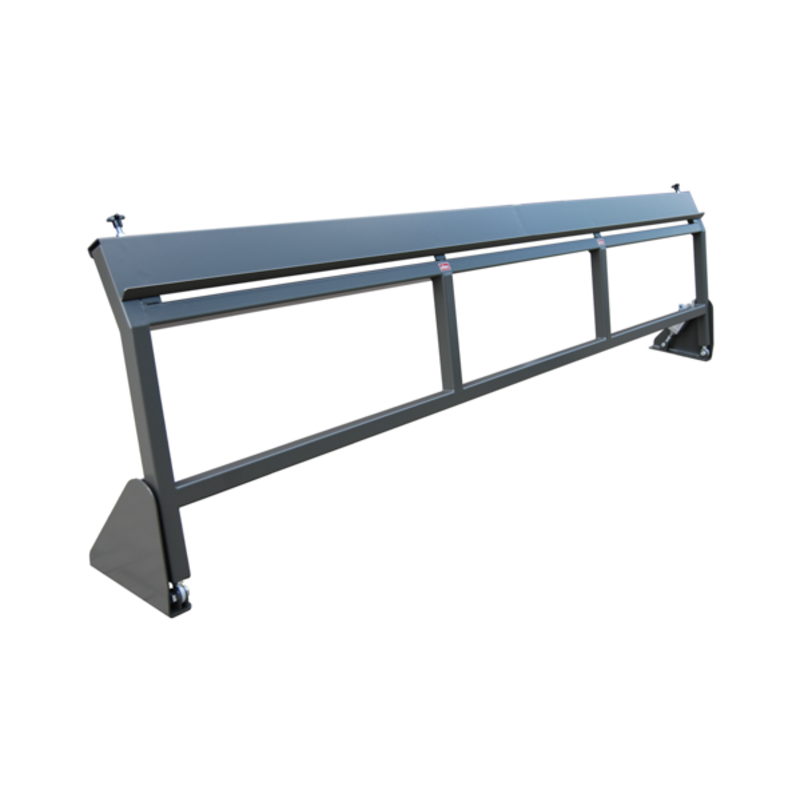

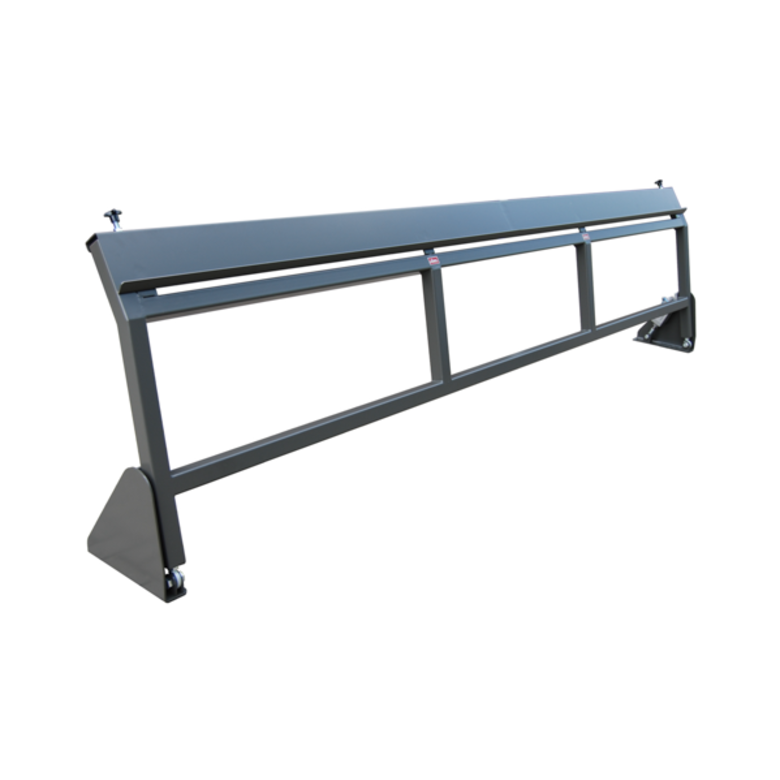

  • Simple input unit 3 metre
  • Input unit full automatic with cornershears
  • Hydraulic adjustable beading tool, half automatic opening, closing and height adjustable
  • Beading bars
