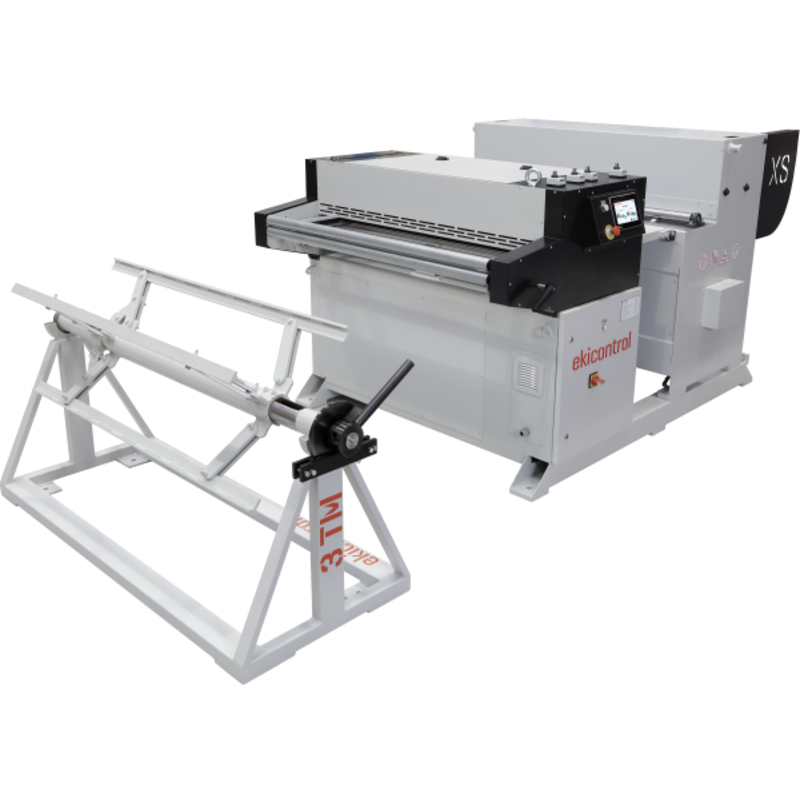

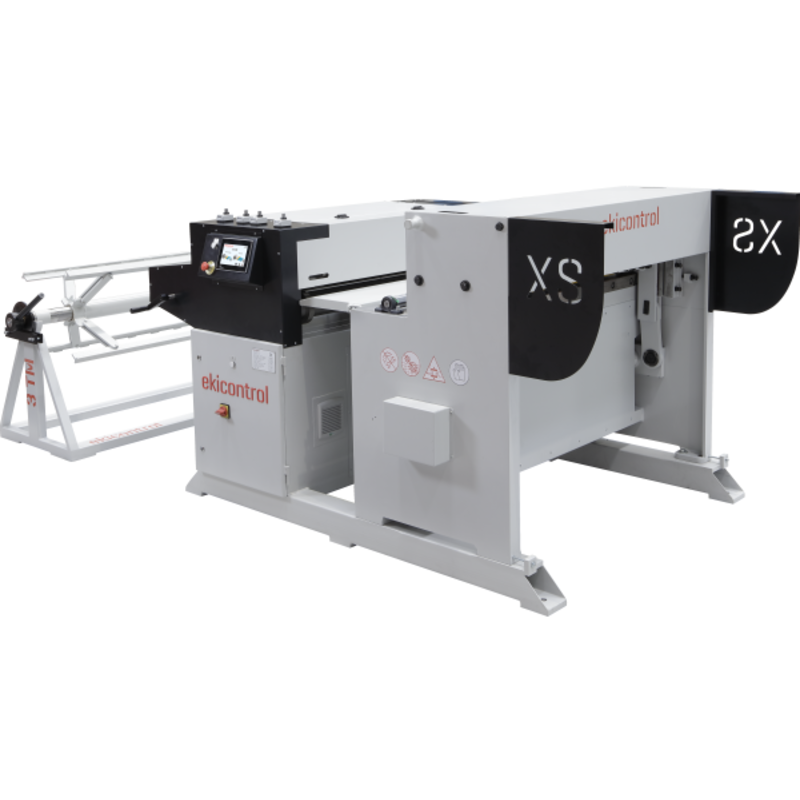

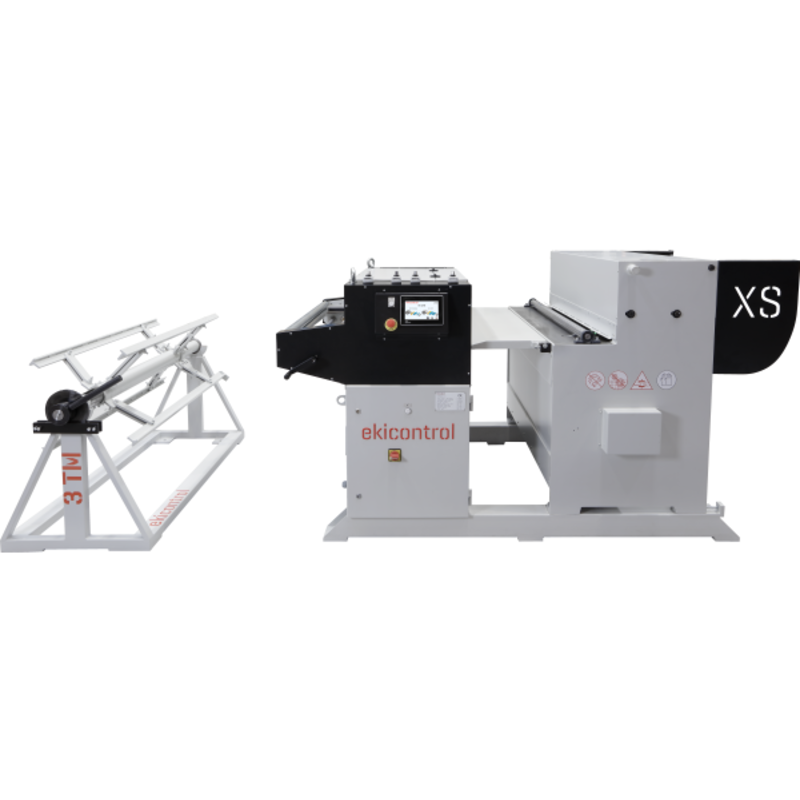

EKICONTROL Cut to length XS Line 1250

Op maat aan te passen | Binnen
EKICONTROL EKICONTROL Cut to length XS Line 1250 EKICONTROL EKICONTROL Cut to length XS Line 1250 EKICONTROL EKICONTROL Cut to length XS Line 1250 EKICONTROL EKICONTROL Cut to length XS Line 1250 EKICONTROL EKICONTROL Cut to length XS Line 1250

Description

The EKICONTROL Cut to length XS Line 1250 is a compact, low-budget model. This slit line is user-friendly and delivers high quality. It has a maximum working width of 1250 mm.

The standard version is equipped with:

Feed guide
Alignment unit with 5 rollers
2 feed rollers
Encoder
Scissors
Touch screen control
Servo motor drive
Slit shaft with 2 sets of slit knives

Specifications

  • Working width1250 mm
  • Capacity (St. 37)0,5 - 1,25 mm
  • Capacity (stainless steel)0,5 - 0,75 mm
  • Capacity (Alu)1 - 2,5 mm
  • Number of straightening rolls2 + 5
  • Slitting blades2, 4 or 6
  • Max. coil weight3, 6 or 10 ton
  • Working speedto 20 m/min
Get in touch with one of our experts Get in touch with one of our experts

Get in touch with one of our experts

Questions about our machines or looking for a quick price indication? Send a message
Options

Options

  • Decoiler
  • Coil trolley
  • Foil application unit
  • Cutting edge winding reel
  • Extra knife sets
  • Stacking tables
Een op maat gemaakte machine? Send a message
