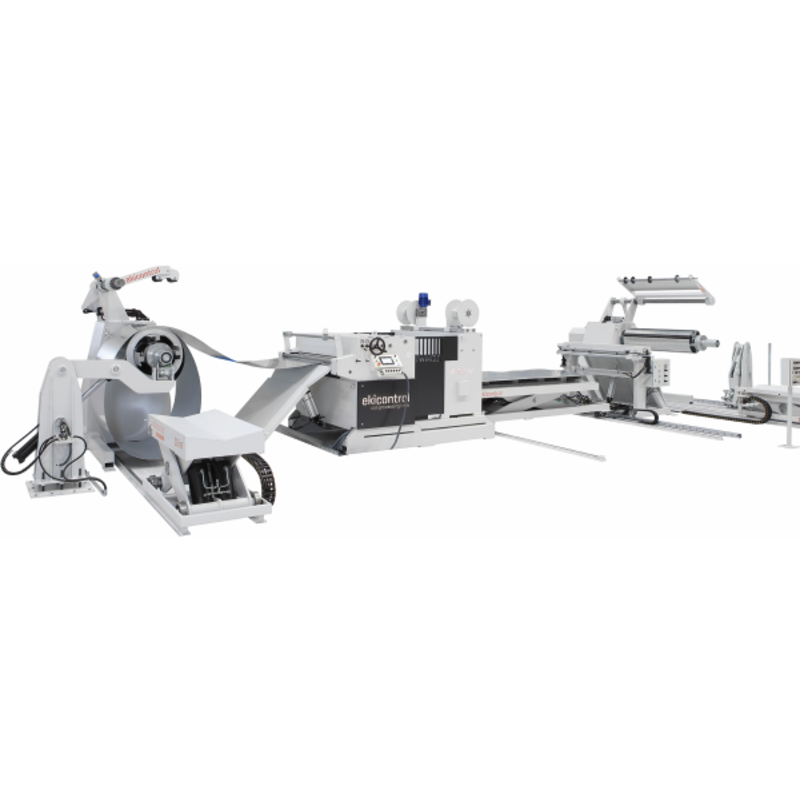

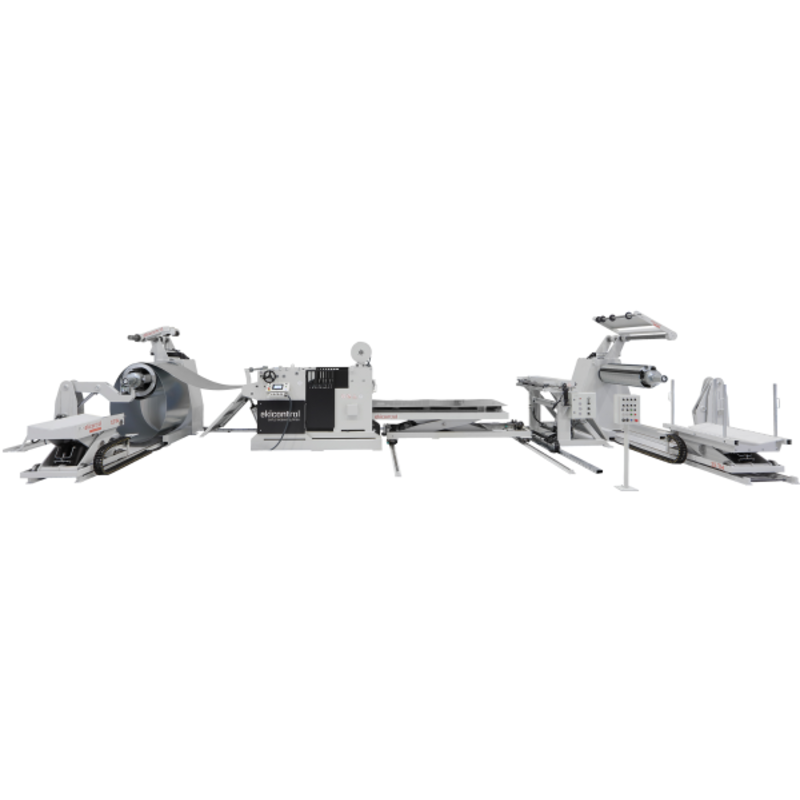

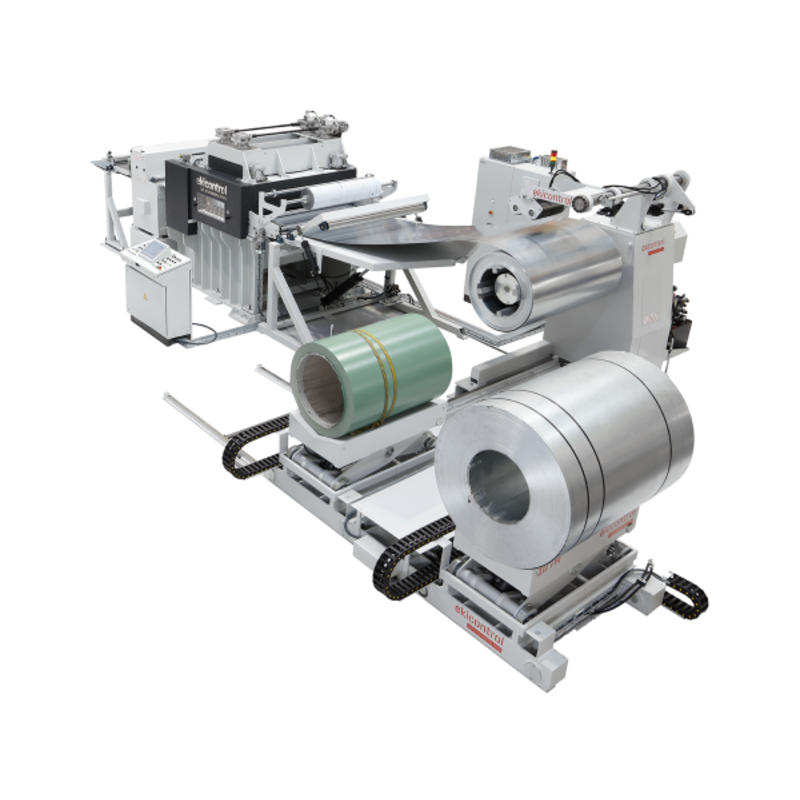

EKICONTROL Cut to Length TwinCut 30

Op maat aan te passen | Binnen

Description

The EKICONTROL Cut to Length TwinCut 30 is a heavier version of the TwinCut 20 model. This machine is known for its efficiency and flexibility. The mobile control gives the machine operator a lot of freedom and a good view of the operations.

Each straightening roller is supported by a ‘back-up’ roller. These prevent the straightening rollers from bending. The upper unit of the straightening roller is motorised and adjustable, ensuring perfect adjustment of the straightening unit.

Standard features:

Adjustable straightening unit with 13 rollers
Straightening roller with 9 straightening rollers, 4 above and 5 below
Adjustable slitting unit
Guillotine shear
Mobile control

Specifications

  • Working width1000, 1250 or 1500 mm
  • Capacity (St. 37)0,6 to 4 mm
  • Number of straightening rolls13
  • Cutting accuracy± 0,5 mm
  • Slitting blades3, 4 or 6
  • Max. coil weight10, 15 or 20 ton
  • Working speedto 40 m/min
Get in touch with one of our experts Get in touch with one of our experts

Get in touch with one of our experts

Questions about our machines or looking for a quick price indication? Send a message
Options

Options

  • Paper unwinding reel
  • Film application unit
  • Stackers and packers
  • Scrap rewinders
  • Hardened rollers for stainless steel
  • Various options available on request
