Description

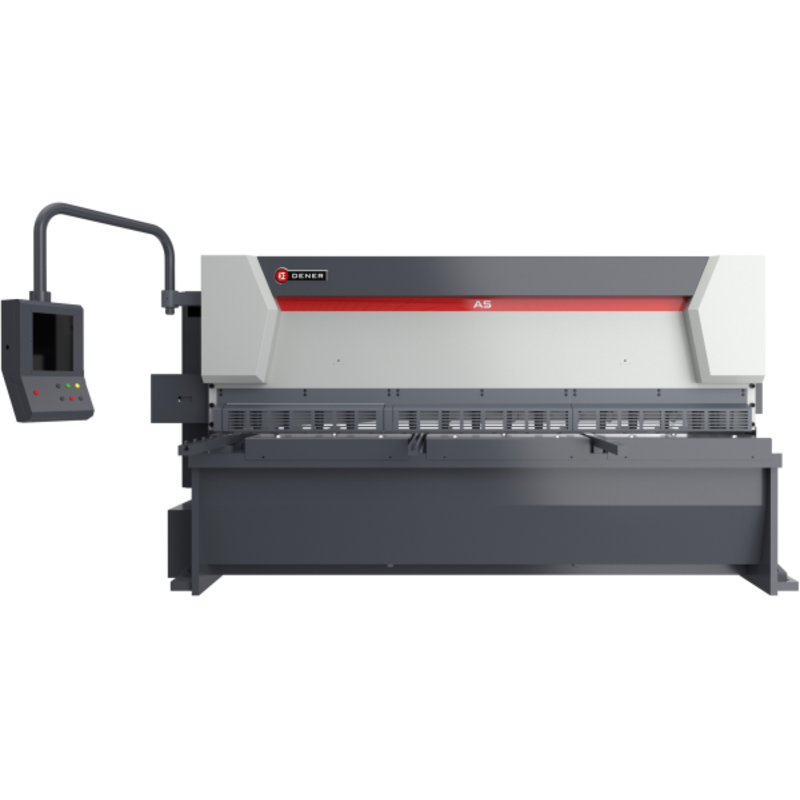

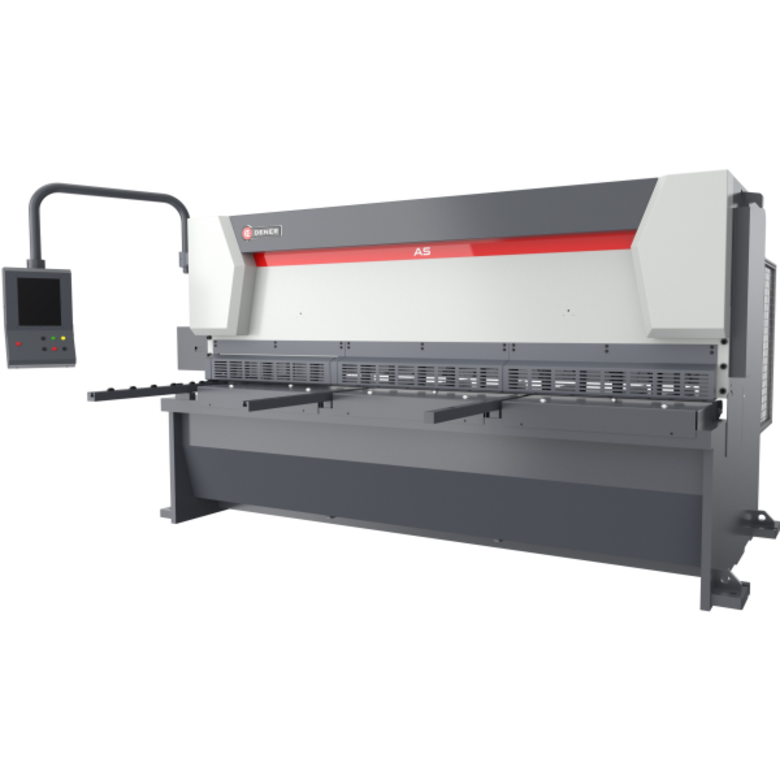

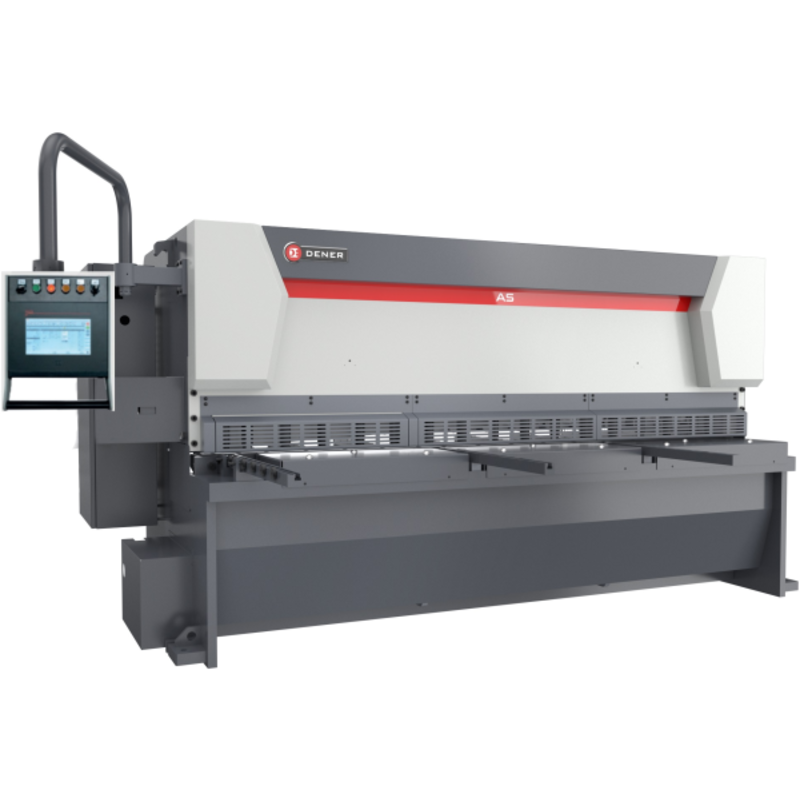

The DENER Guillotine Shears AS series are plate shears with a heavy and robust construction and ideally suited for intensive use in harsh production environments. The cutting gap and cutting angle are automatically adjustable, making the Dener AS-series guillotine shears widely applicable, suitable for cutting various plate thicknesses and types.

Standard equipment:

• ESA 560 CNC control
• Automatic cutting gap adjustment With the cutting gap adjustment, the blade beam is supported over its entire length, for less distortion during cutting
• Automatic stroke adjustment
• Automatic cutting angle adjustment
• Support table fitted with ball pots
• 1000 mm backgauge with ball screws and AC motor
• Finger guard that folds open
• 1-metre-long right-angle support arm on the left front side with T-slot, including stop bracket and ruler
• 2 additional support arms of 1 metre length
• Illuminated cutting line / shadow line with LED lighting
• Hydraulic downriggers
• Hardened and ground upper blades with 2 cutting edges
• Hardened and ground bottom with 4 cutting edges
• Sturdy frame, welded and machined
• Sloping chute at rear of shears
• Security rear cage construction with 2 photo cells
• Foot pedal with emergency stop
