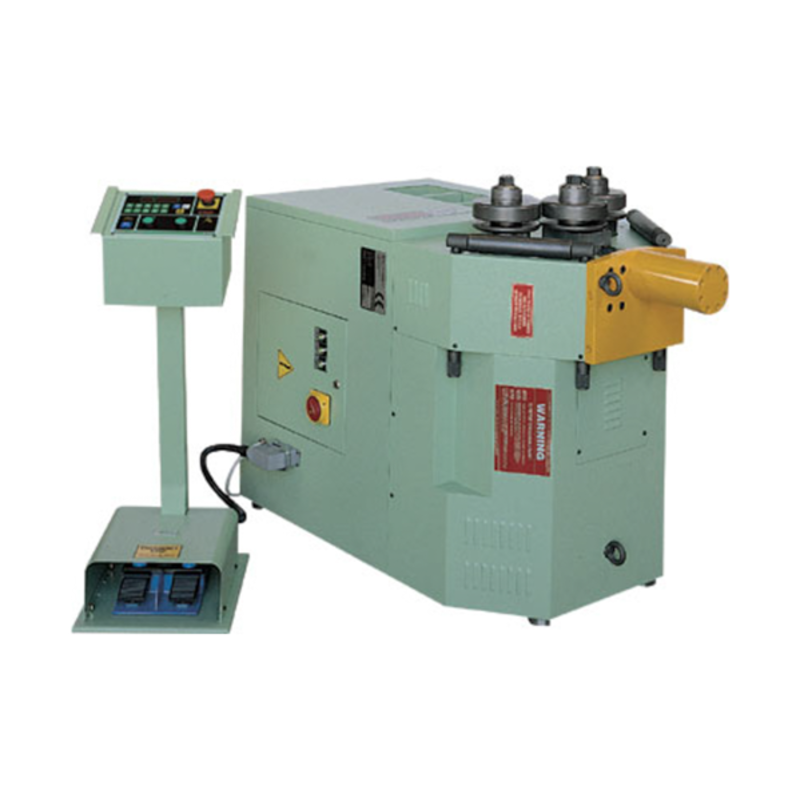

BPR Profile Roll Bending Machine CPH 40

Op maat aan te passen | Binnen

Description

The BPR Profile Roll Bending Machine CPH 40 is a profile roller with a shaft diameter of 40 mm. The top roller is hydraulically pneumatically adjustable. All three rollers are driven. Via the USB port, it is possible to import and export programmes. 20 bending programmes can be stored with 20 top roll positions. The machines is heavily constructed. The axes are hardened and ground from high-quality machine steel. Both horizontal and vertical work can be done on this machine.

Standard with:

  • Control panel
  • Side guides
  • Standard roller set
  • Adjustment tool

Specifications

  • Shaft diameter40 mm
  • Diameter of roll162 mm
  • Driven rollers3
  • Working positionVertical-Horizontal
  • Working speed9 RPM
  • Engine power1,5 kW
  • Werkdruk230 bar
Get in touch with one of our experts Get in touch with one of our experts

Get in touch with one of our experts

Questions about our machines or looking for a quick price indication? Send a message
Options

Options

  • Various rollers and attachments available
Een op maat gemaakte machine? Send a message
