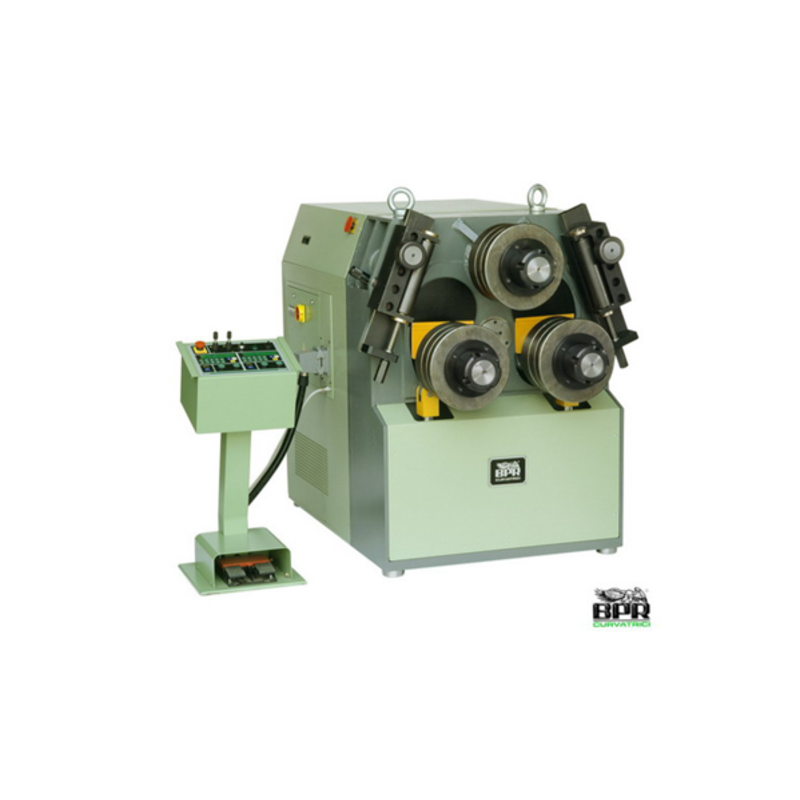

BPR Profile Roll Bending Machine CPD 100

Op maat aan te passen | Binnen

Description

The BPR Profile Roll Bending Machine CPD 100 is a profile roller with 3 driven rollers. The 2 bottom rollers are adjustable and bending on 2 sides. The side guides are hydraulically adjustable and can be operated with a joystick on the control panel. The machine is protected against overloading by safety valves. Both horizontal and vertical work can be done on the machine. All 3 axles are hardened and ground.

Control

The machine is operated with pushbuttons. Movements are handled by the PLC on the control panel. Variables and programme data are clearly displayed on the control panel. 50 programmes can be stored, each with a number of consecutive bending steps and adjustable speed. The system is self-learning, allowing the operator to store all data from manual work, trial bends or complex bends with multiple steps without time limit.

Supplied as standard with:

  • Tool
  • Set of universal and telescopic adjustable rollers, hardened.
  • Side guides with rollers

Specifications

  • Shaft diameter100 mm
  • Diameter of roll310 - 330 mm
  • Driven rollers3
  • Working positionVertical-Horizontal
  • Engine power5,5 kW
Get in touch with one of our experts Get in touch with one of our experts

Get in touch with one of our experts

Questions about our machines or looking for a quick price indication? Send a message
Options

Options

  • Various rollers available
Een op maat gemaakte machine? Send a message
